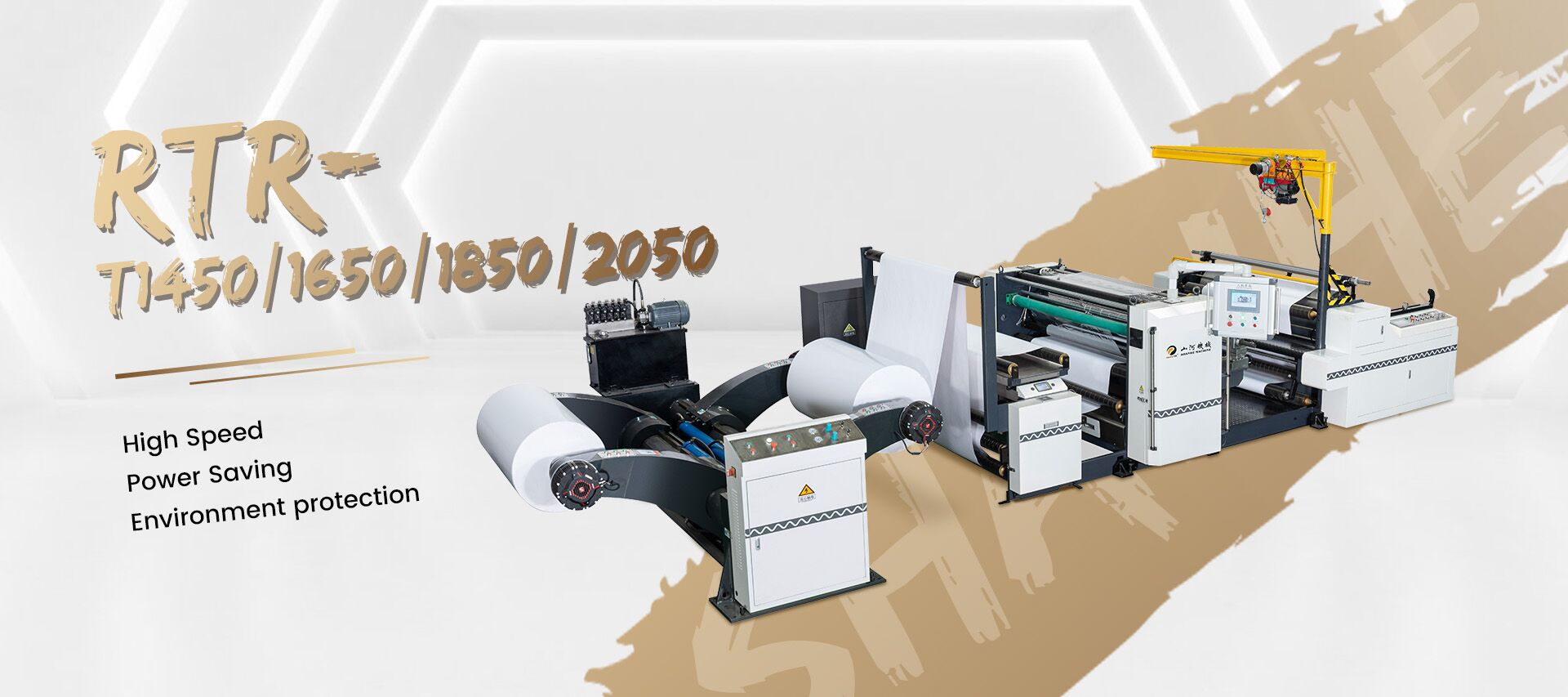

RTR-T1450/1650/1850/2050 High Speed Roll to Roll Thermal Laminator

Short Description:

RTR-T1450/1650/1850/2050 High Speed Roll to Roll Thermal Laminator is a new combination model specially developed by our company for the packaging industry. It’s available for laminating non-glue film and thermal film. It is widely used in books, periodicals, picture albums, manuals, wall charts, maps, packaging, etc.
It uses flexographic printing and offset printing drum materials to complete the entire set of process at one time, with exquisite film covering quality and high production speed. It effectively solves the multiple process waste, labor, site, logistics, and other process issues that plague the printing industry.

Send email to us

Product Detail

Product Tags

SPECIFICATION

RTR-T1450
Max. roll width	1450mm
Min. roll width	600mm
Max. roll diameter	1500mm
Paper GSM	100-450g/m²
Speed	80-120m/min
Max. roll weight	1500kg
Air pressure	7bar
Production power	25kw
Total power	48kw
Machine size	L14000W3000H3000mm
Machine weight	150000kg

RTR-T1650
Max. roll width	1600mm
Min. roll width	600mm
Max. roll diameter	1500mm
Paper GSM	100-450g/m²
Speed	80-120m/min
Max. roll weight	1800kg
Air pressure	7bar
Production power	30kw
Total power	55kw
Machine size	L15000W3000H3000mm
Machine weight	160000kg

RTR-T1850
Max. roll width	1800mm
Min. roll width	600mm
Max. roll diameter	1500mm
Paper GSM	100-450g/m²
Speed	80-120m/min
Max. roll weight	2000kg
Air pressure	7bar
Production power	35kw
Total power	65kw
Machine size	L16000W3000H3000mm
Machine weight	180000kg

RTR-T2050
Max. roll width	2050mm
Min. roll width	600mm
Max. roll diameter	1500mm
Paper GSM	108-450g/m²
Speed	118-120m/min
Max. roll weight	2000kg
Air pressure	7bar
Production power	48kw
Total power	75kw
Machine size	L16000W3000H3000mm
Machine weight	190000kg

MACHINE DETAILS

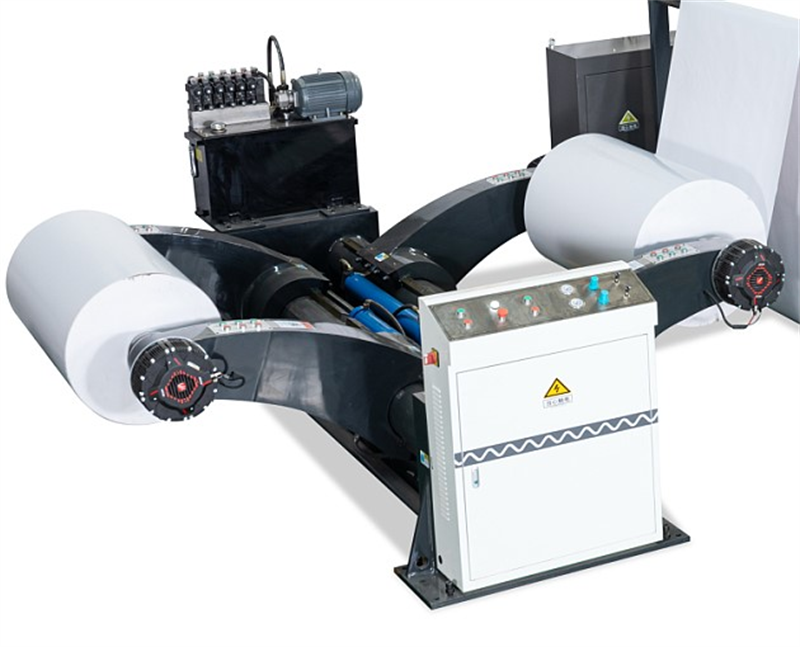

A. Roll Feeding Part

● Shaftless clamping, hydraulic lifting.

● AB roll unwinding diameter Φ1800 mm.

● Internal expansion chuck: 3″+6″ inches.

● Multi-point brakes.

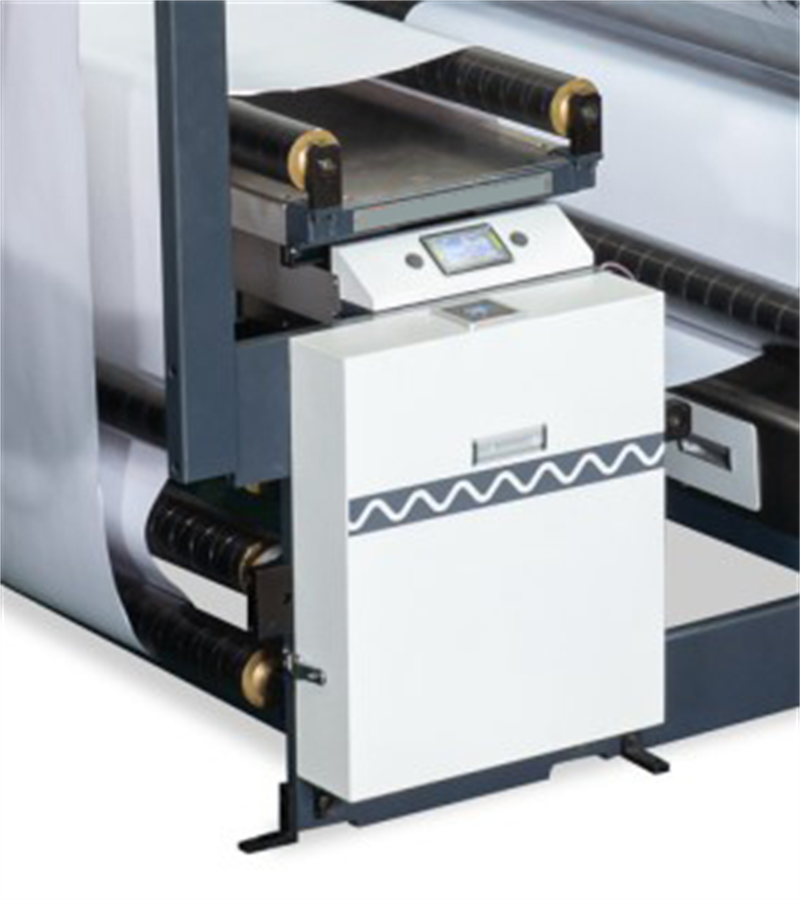

B. Tension Correction System

● Star/followed or follow-line.

● The optical correction system.

● Tar tension control.

C. Main Driver

● Main motor, 7.5KW from SEIMENS.

● Reducer: oblique gear reducer.

● The main machine uses a 100mm wide synchronization with transmission, no noise.

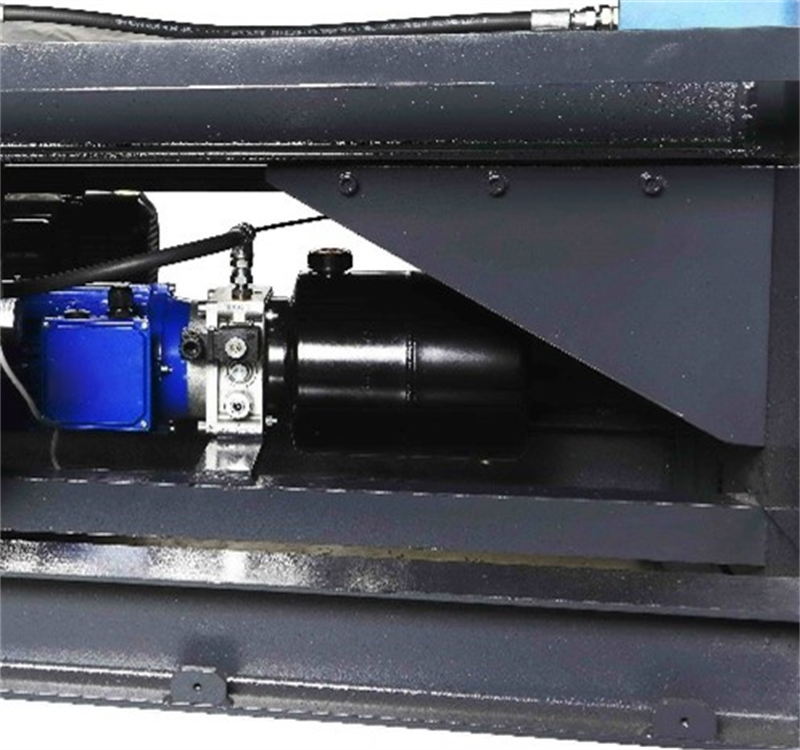

D. Hydraulic Part

● Hydraulic system: Italy brand Oiltec.

● Hydraulic oil cylinder: Italian brand Oiltec.

● The main wall plate adopts enhanced 30mm thick steel plate reinforcement.

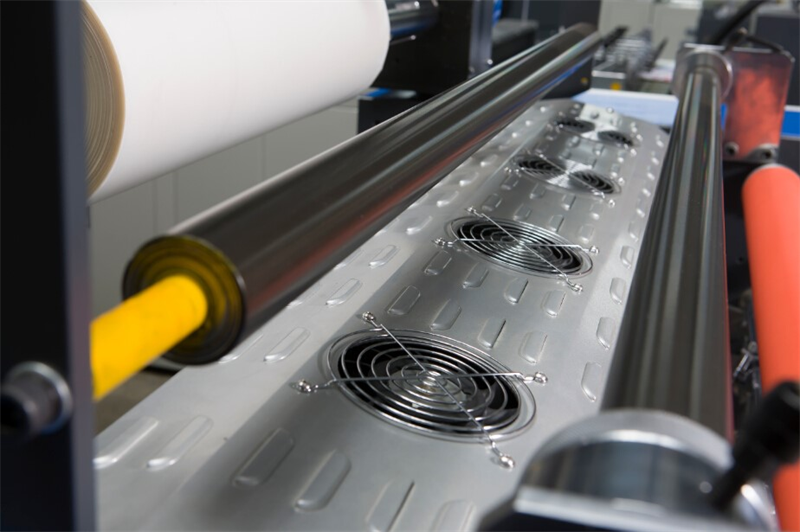

E. Electromagnetic Induction Heating

● The electromagnetic induction heating system directly heats the surface of the laminating steel roll.

● The superconducting material is used in the steel roll, which fully guarantees the temperature and thermal energy compensation of the steel roll.

● It is conducive to high-speed and durable continuous production.

● Intelligent temperature control system, PLC with temperature module.

● Non-contact inlet probe.

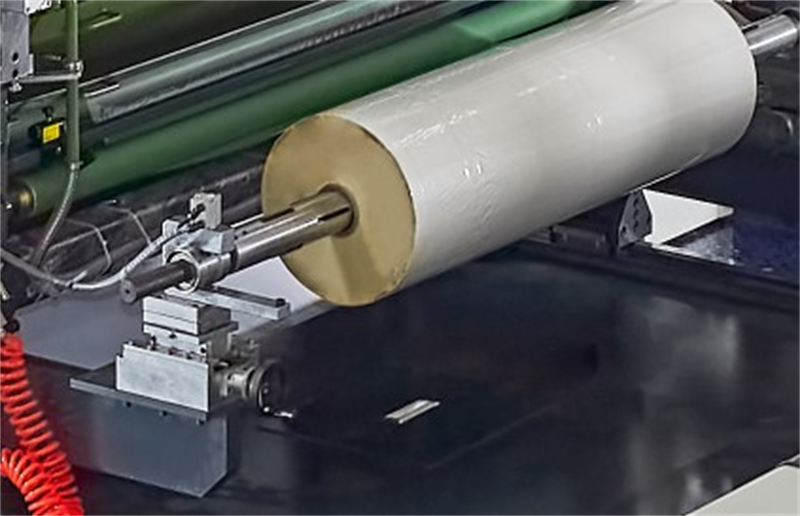

F. OPP Film Roll Feeding Unit

● The magnetic particle brake controls OPP tension to put the membrane uniformly.

● The constant tension control system.

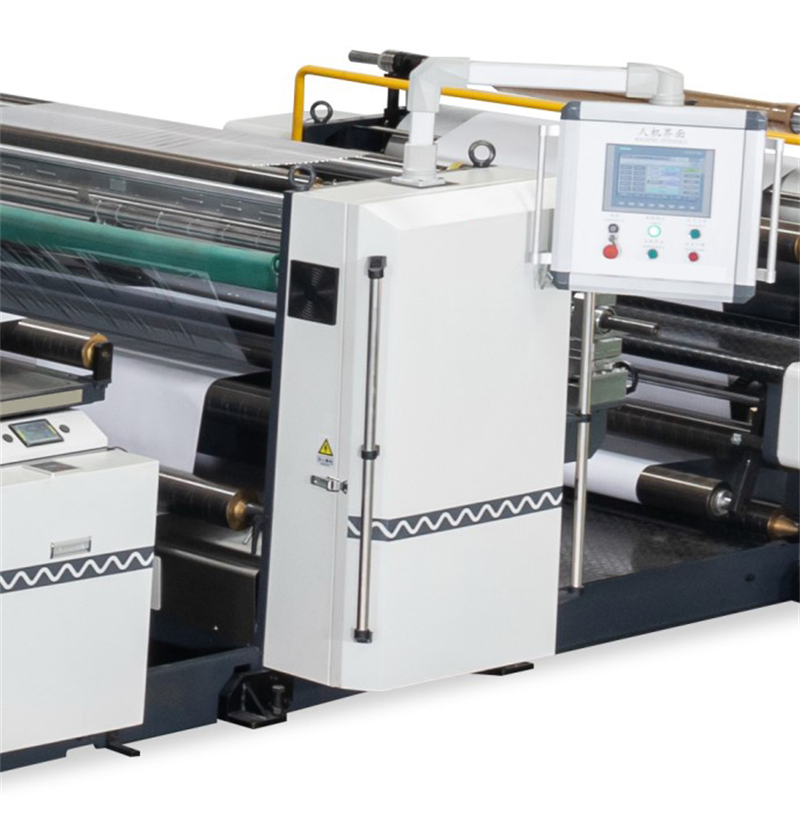

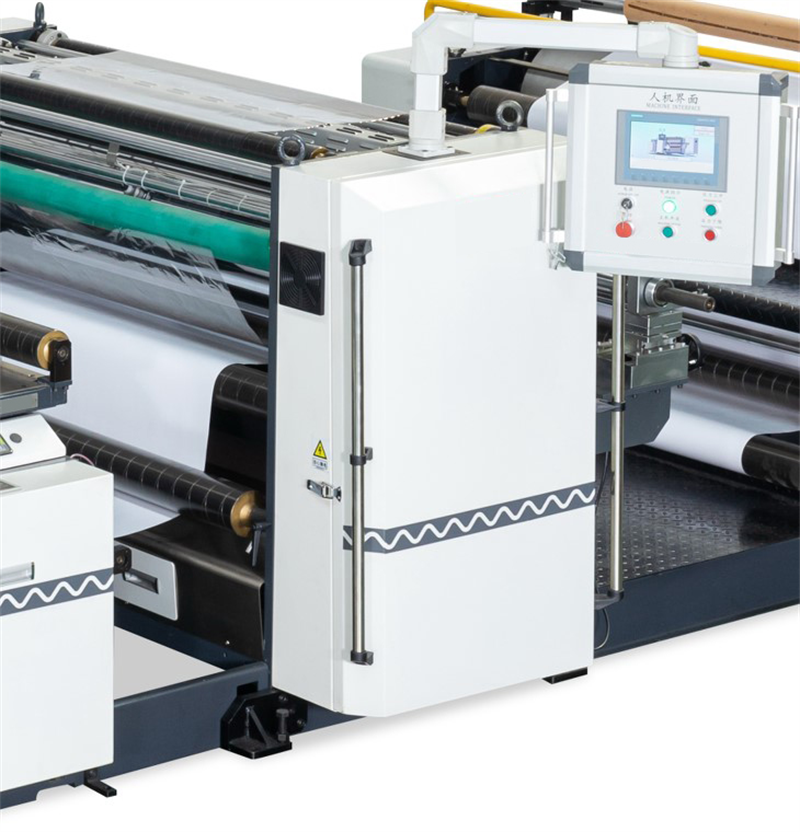

G. Main Laminating Machine

● Man-machine interface, convenient operation, intelligent control.

● The internal electromagnetic roller heating system, uniform temperature.

● Femon grinding mirror φ420 roller to ensure the brightness of the laminating products.

● The temperature setting range can be set, up to 120 degrees.

● The adaptation of no glue film, pre-coating film.

● SUS304 stainless steel shield

● Oiltec Hydraulic systems (Oil pumps, cylinders) imported from Italy

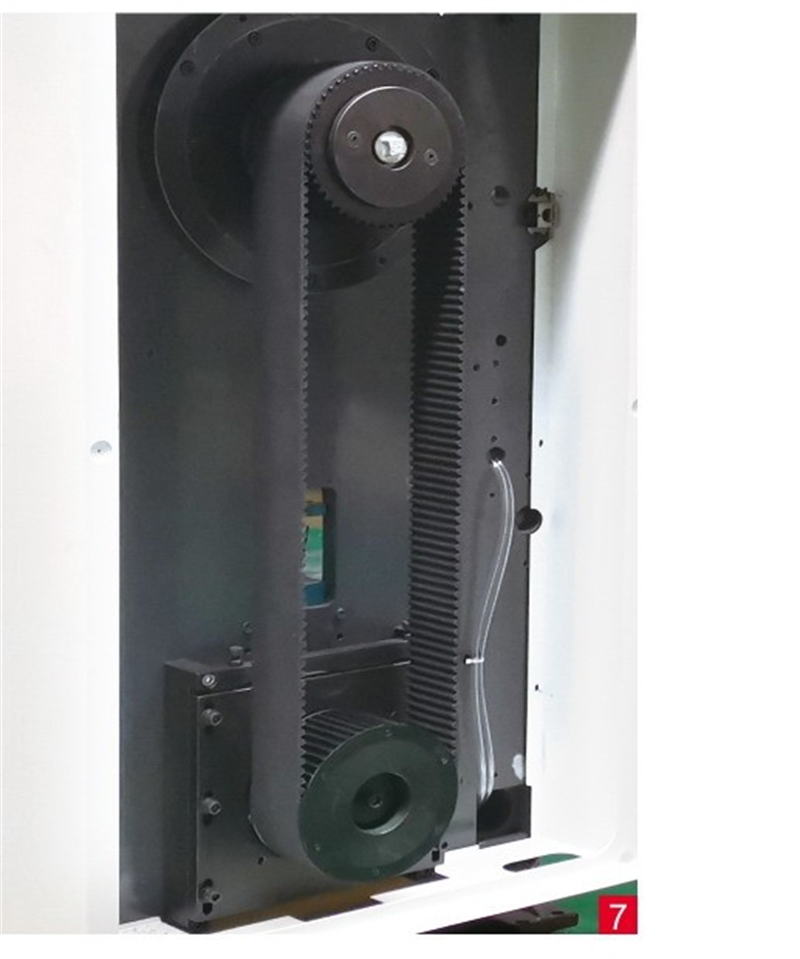

H. Main Transmission Part

● Tracking machine: oblique gear reducer.

● The host uses 100mm wide synchronization with transmission.

● The main transmission gear box 7 grades to teeth.

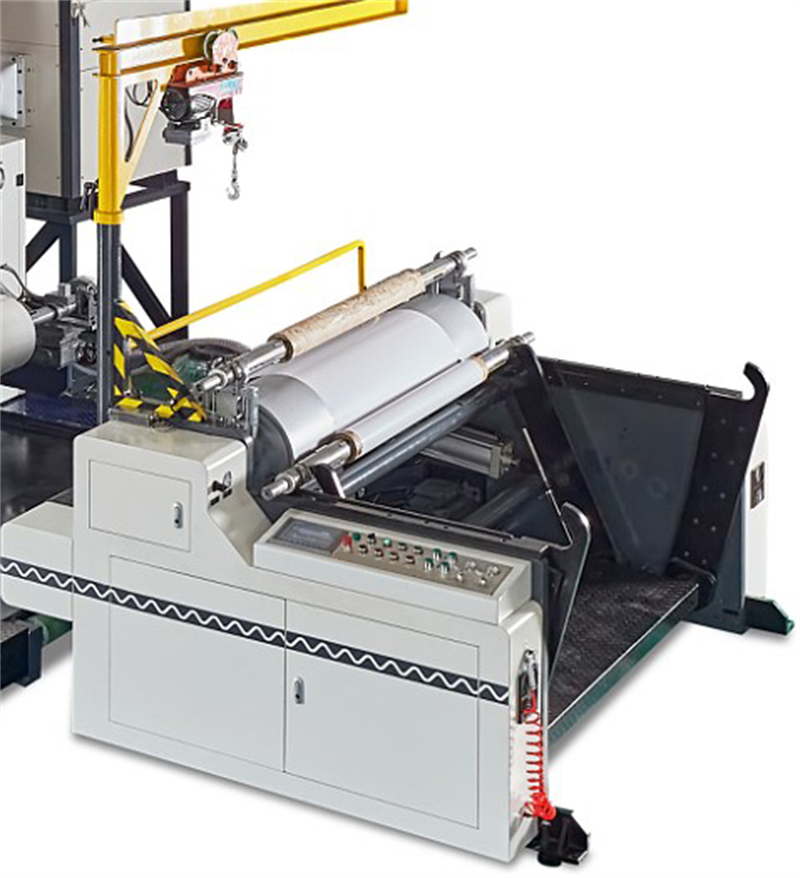

I. Surface Roll Collection Method Collection

● AC vector variable frequency control, 7.5kw of frequency conversion motors.

● The paper roll lifting is driven by dual-oil cylinder, including a hydraulic system.

● The paper core card buckle is installed with a set of switches, and logic control is performed through PLC to ensure the safety of operation.

● An 3 "Blay axes, including transmission gears and punching guns.

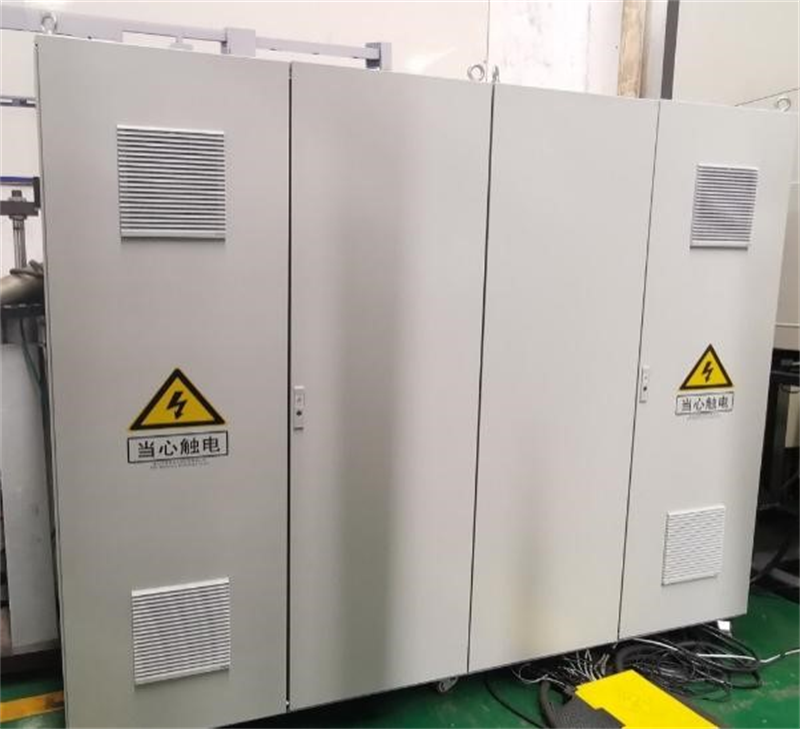

J. CE Standard Independent Electric Cabinet

● CE standard independent electric cabinet, imported electrical components ensure stability, less maintenance, the circuit is controlled by PLC, the button is less, the operation is simple, and the humanized design.
