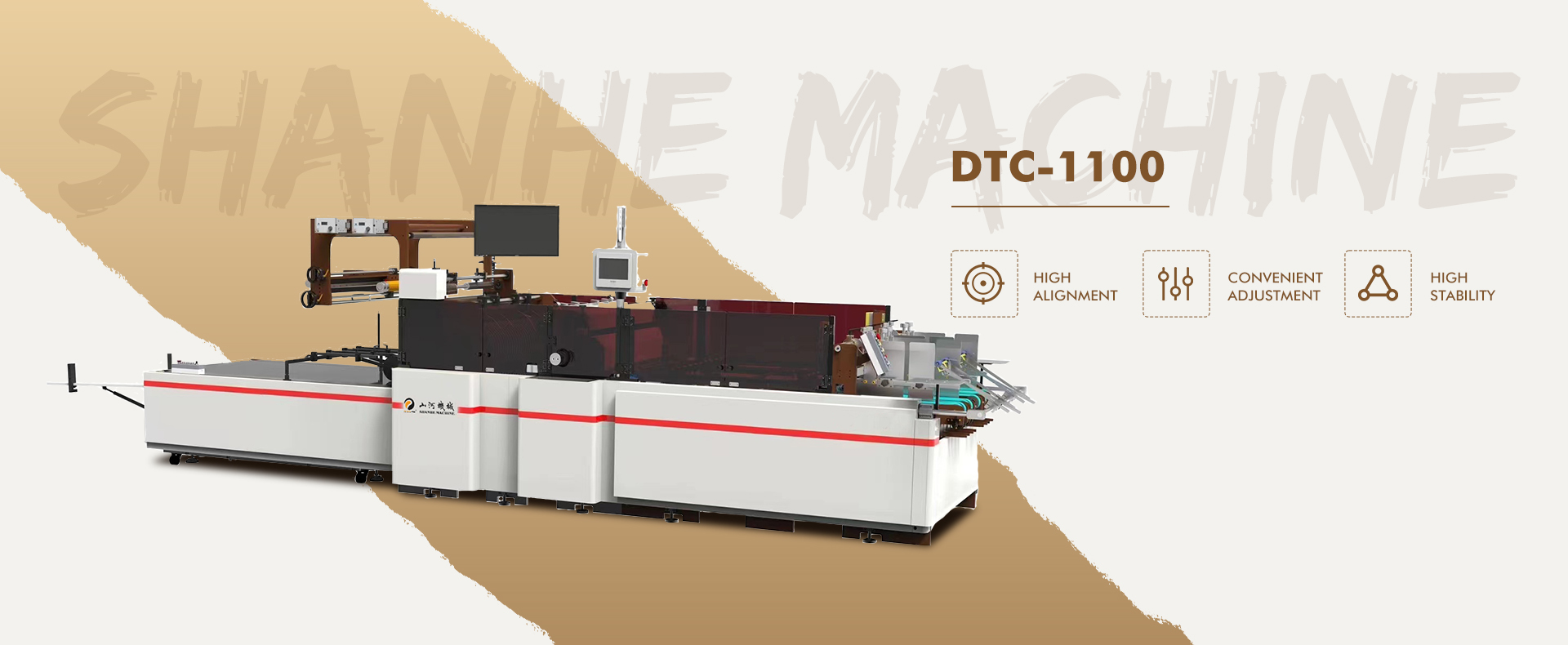

DTC-1100 Automatic Window Patching Machine (Dual Channel)

Short Description:

DTC-1100 Automatic Window Patching Machine is widely used in the patching to packing paper articles with window or without window, such as phone box, wine box, napkin box, clothes box, milk box, card etc.

Send email to us

Product Detail

Product Tags

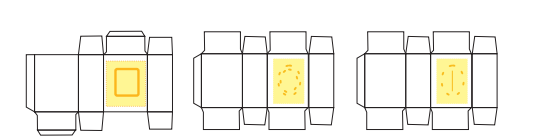

PRODUCT SHOW

SPECIFICATION

DTC-1100
Max. paper size(mm)	960*1100
Min. paper size(mm)	200*150
Max. thickness of paper	6mm (corrugated) 200-500g/㎡ (cardboard)
Max. patch size(mm)	600(L)*800(W)
Min. patch size(mm)	40(L)*40(W)
Film thickness(mm)	0.03—0.25
Max. speed of small size paper(pcs/h)	One channel ≤ 20000 Double channel ≤ 40000
Max. speed of medium size paper(pcs/h)	One channel ≤ 15000 Double channel ≤ 30000
Max. speed of big size paper(pcs/h)	One channel ≤ 10000
Small size paper length range(mm)	120 ≤ paper length ≤ 280
Medium size paper length range(mm)	220 < paper length ≤ 460
Big size paper length range(mm)	420 < paper length ≤ 960
Single channel width range(mm)	150 < paper length ≤ 400
Double channel width range(mm)	150 ≤ paper length ≤ 400
Accuracy(mm)	±1
Machine weight(kg)	About 5500kg
Machine size(mm)	680021001900
Machine power(kw)	14
Real power	About 60% of the machine power

DETAILS

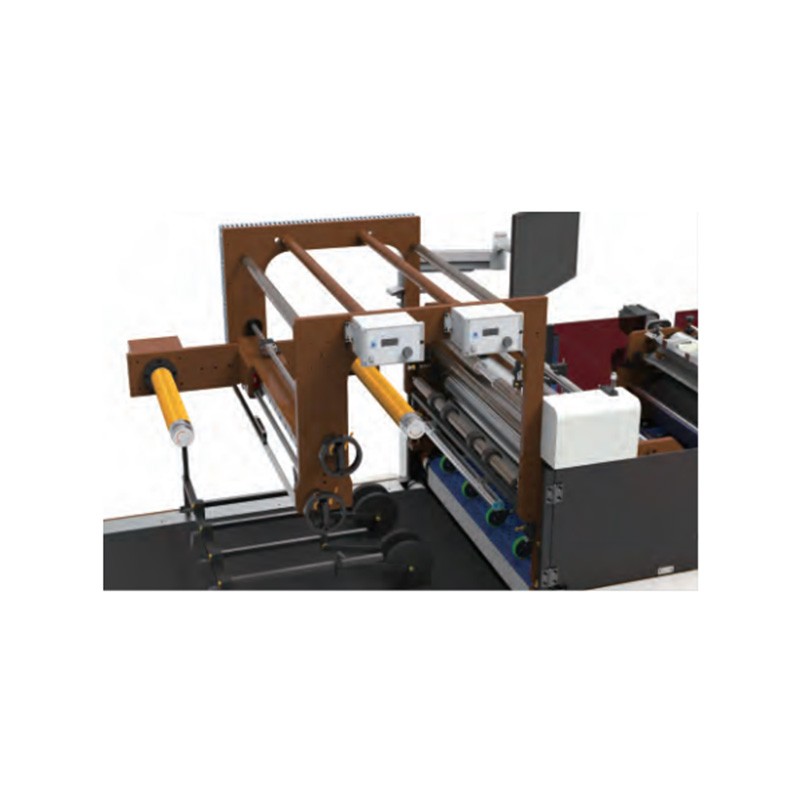

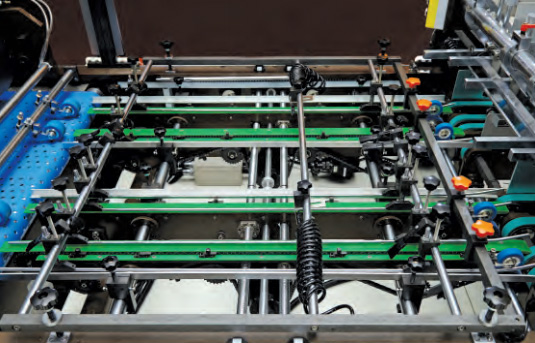

Paper Feeding System

● The full servo paper feeder system and a variety of paper mode can adjust cartons of different thickness and specifications to ensure that cartons enter the conveyor belt quickly and stably. Double-channel paper-feeding efficiency.
● The whole machine adopts 9 servo motor drive, high precision, good stability, easy to adjust.
● With data memory function.

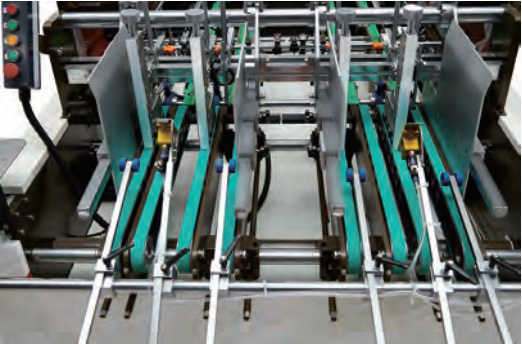

Correction System

Gluing System

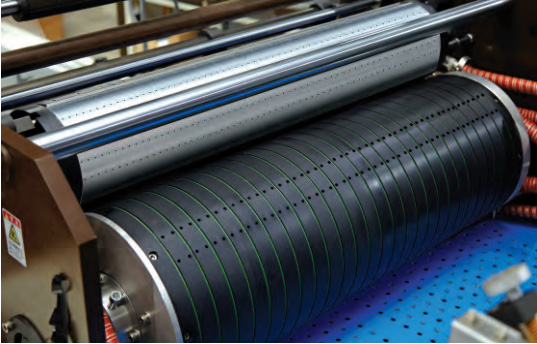

The quick change of cold glue plate can adapt to the quick adjustment of different products. The gellan drum is controlled by servo system, and the position of the front and back of the plate can be adjusted by computer, which is fast and accurate.

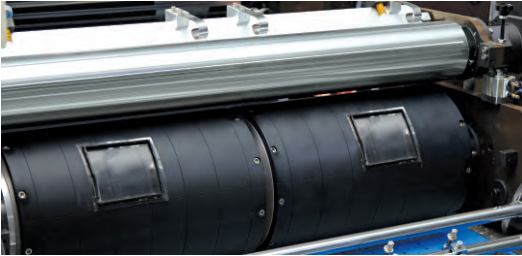

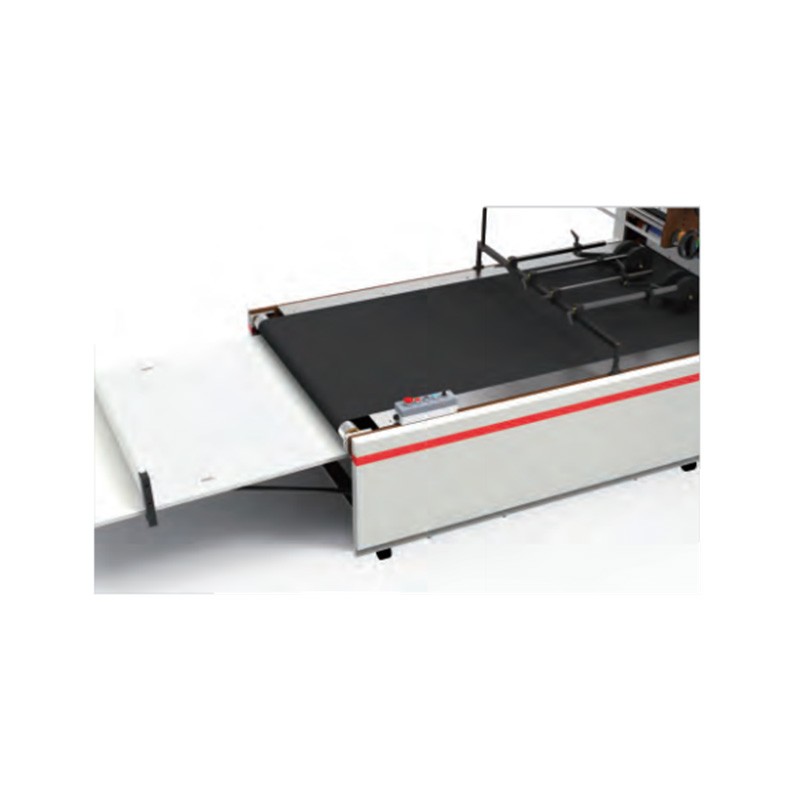

Fitting System

The height of glue-coated drum can be adjusted, so it can be adjusted quickly. The lifting device can lift the machine when there is no carton entry to prevent the rubber plate from contacting the conveyor belt. When the machine stops, the cots automatically operate at low speed to prevent the glue from drying.
