QHZ- 2000/ 2200/ 2400/ 2800 Automatic High Speed Corrugated Folder Gluer

Short Description:

QHZ-2000/ 2200/ 2400/ 2800 is our enhanced heavy-duty model of folder gluer, which is suitable for E/C/B/AB 3-layer or 5-layer corrugated board box. Machine is diverse for different kinds of boxes and is easy in adjusting & operating.

Send email to us

Product Detail

Product Tags

PRODUCT SHOW

SPECIFICATION

QHZ- 2000/2200/2400/2800
Max. paper thickness	Carton board max. 1200 g/m²
Max. paper thickness	Corrugated flute type E, C, B, AB 3 & 5 layers
Max. speed(m/min)	300
Inching speed(m/min)	20
Max. fold box thickness(mm)	20
Machine size(mm)	22500(L) x 3050(W) x 1900(H)
Weight(ton)	11.5
Power(kw)	26
Air compression(bar)	6
Air consumption(m³/h)	15
Air tank capacity(L)	60

DETAILS

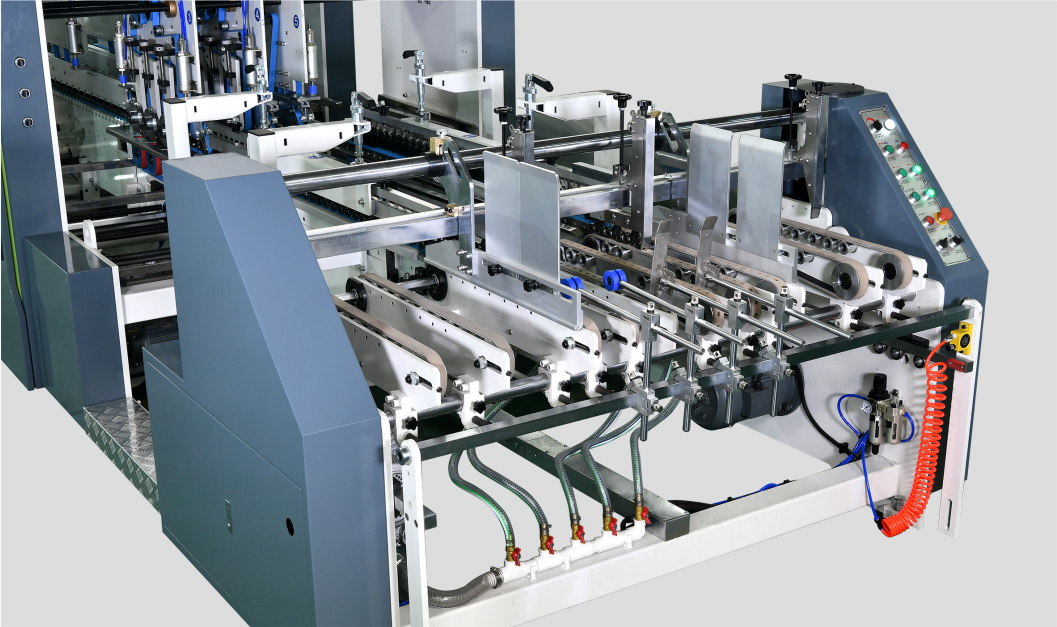

Suction Feeder with Vibration

● Friction feeder. Independently driven by servo-motor.
● Adjustable electronic pile vibrator.
● Lateral feed gates fully adjustable to the width of the blank.
● 3 adjustable front feed knives with bogies and 3 additional smaller sets.
● 8 feeder belts including 4 drilled belts for suction function.
● Control panel with touchscreen and buttons for all operations.

QHZ-2000-2200-2400-2800-Machine-details1

QHZ-2000-2200-2400-2800-Machine-details10

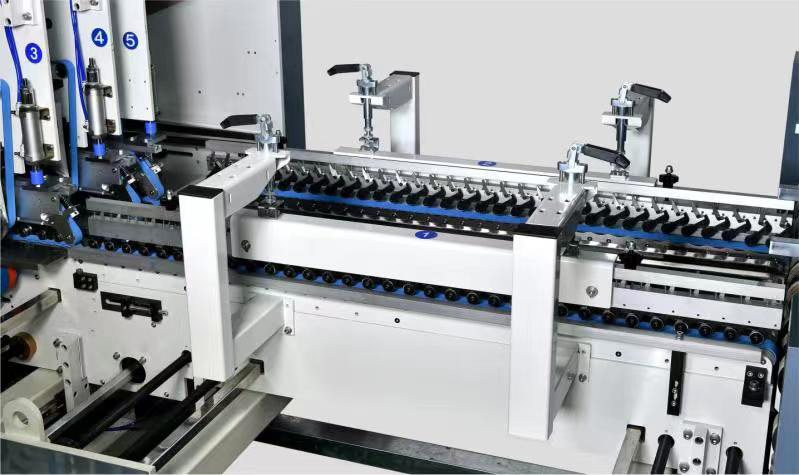

Aligner

● Independent section that registers the blank to one side ensuring a perfect parallelism before entering the pre-folding or gluing sections.
● Independently driven by servo-motor.
● Possibility to register on any side of the machine.
● Fast and easy setup.

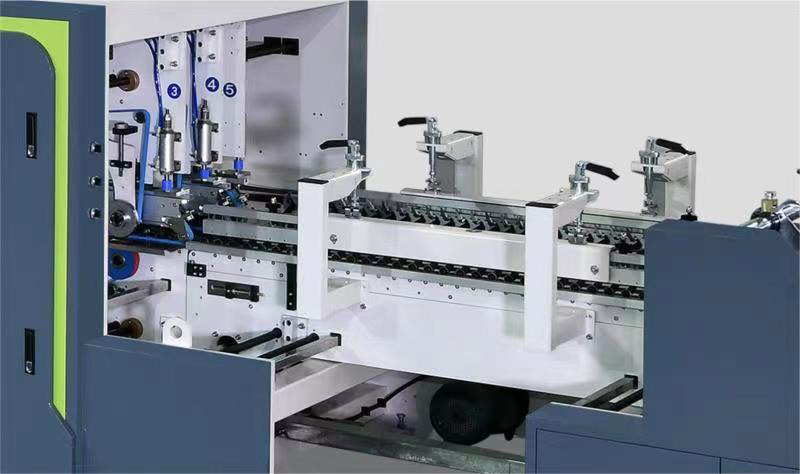

Pre-folding

● Independently driven by motor.
● Left hand glue flap pre-folder up to 180°.
● Third crease line pre-folder up to 135°.
● 1st and 3rd crease openers.

QHZ-2000-2200-2400-2800-Machine-details9

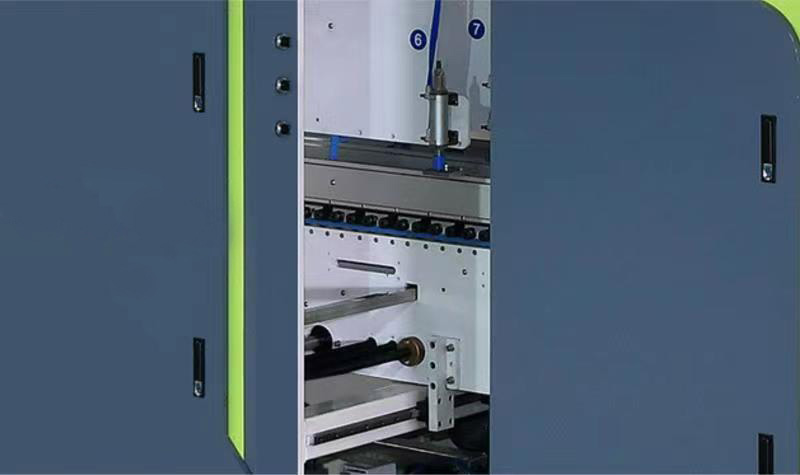

QHZ-2000-2200-2400-2800-Machine-details8

Lock Bottom Section

● Independently driven by motor.
● Complete set of folding hooks and helixes for smooth and accurate folding of front flaps.
● Adjustable hook tension.
● Set of accessories for “B” lock bottom.
● Fast and easy setup.

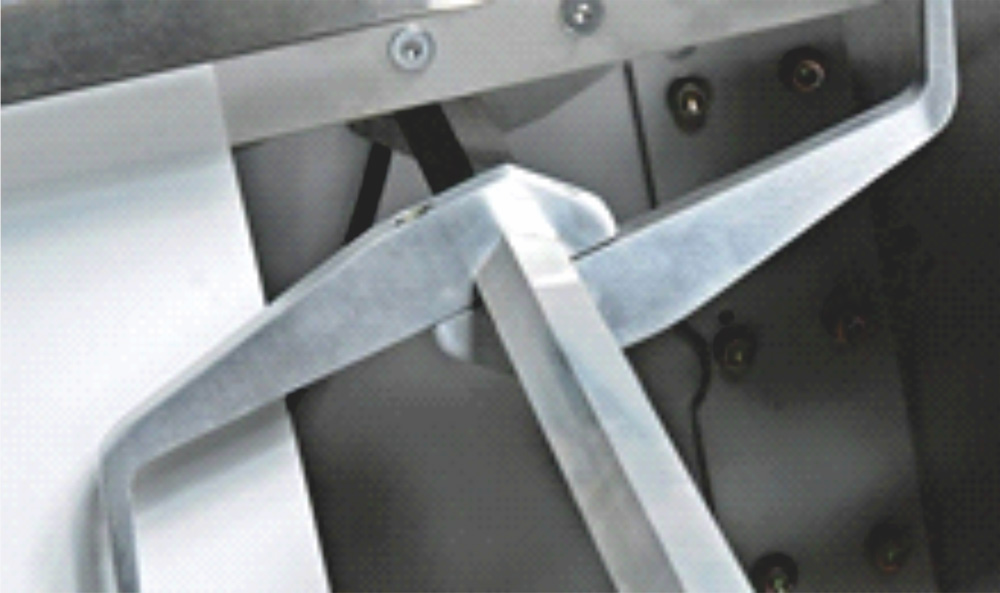

Glue Tanks

● One lower (left side) gluing tank.
● Optional electronic upper gluing system upon request.
● Easy to remove and clean.

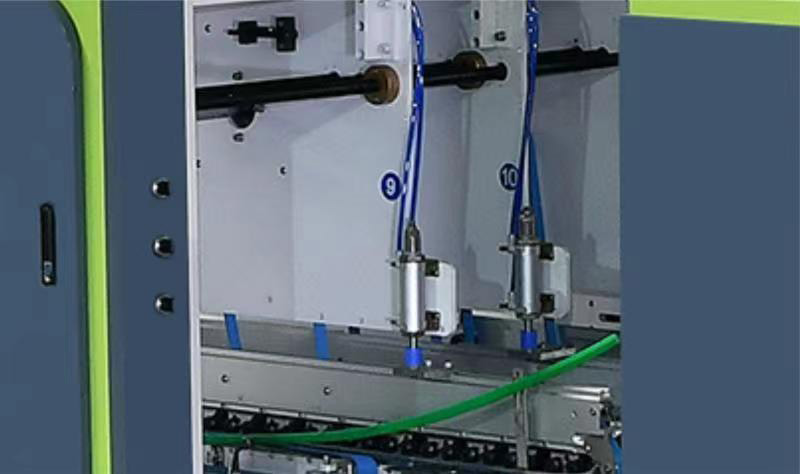

QHZ-2000-2200-2400-2800-Machine-details6

QHZ-2000-2200-2400-2800-Machine-details7

4&6 Corners System

● Motorized and untimed electronic back folding system with intelligent servo-motor technology.
● Two independent servo motors, one for each shaft.
● Versatile and easy to setup.

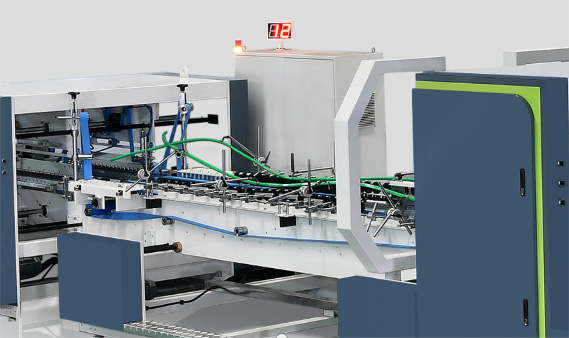

Folding System

● Independently driven by motors.
● Smooth and accurate folding of 2nd and 4th creases.
● Outer folding belts adjustable up to 180° with variable speed controlled by two independent servo-motors, L & R side.
● Three sets of upper & lower carriers with 34mm upper, 50mm lower and 100mm outer belts.
● Easy accessibility，Mini-box folding device.

QHZ-2000-2200-2400-2800-Machine-details5

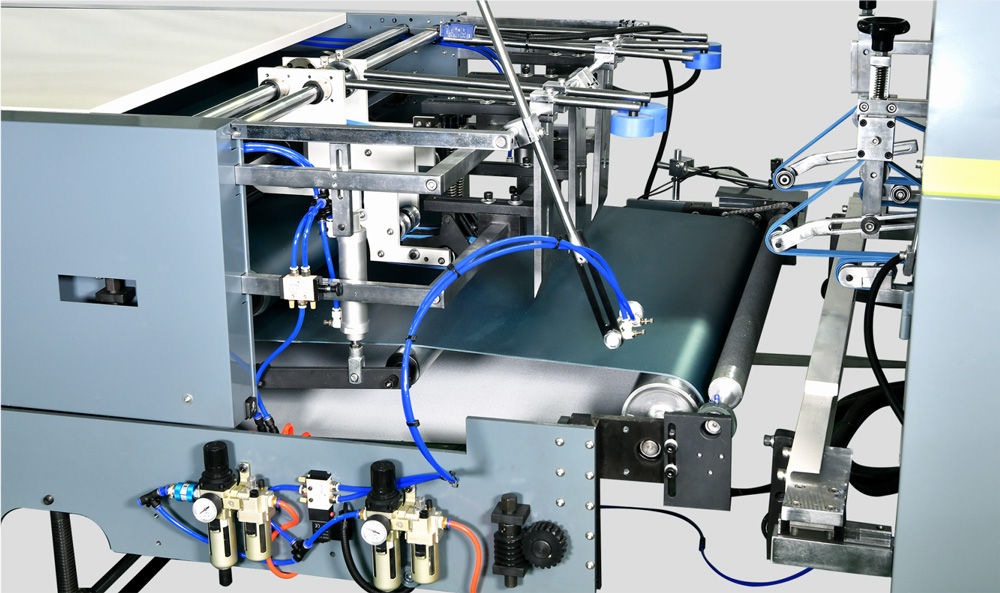

QHZ-2000-2200-2400-2800-Machine-details4

Trombone

● Single and easy operation for upper/down expansion adjustment; left/right twin boards moveable for piling.
● Accountable sensor.

Delivery

● Independently motorized pneumatic press section.
● Manual and Automatic mode (follow up).
● Upper section moves back and forward through a motorized system, allowing different box length.
● 6 meters total length with 4.0 meters of effective pressure.
● Pneumatic pressure regulation.

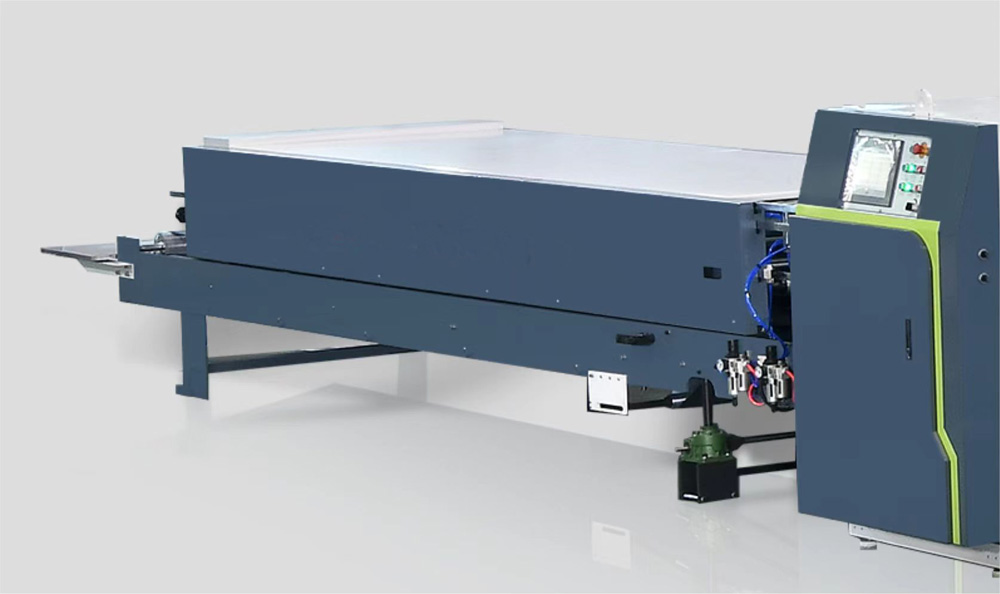

QHZ-2000-2200-2400-2800-Machine-details11

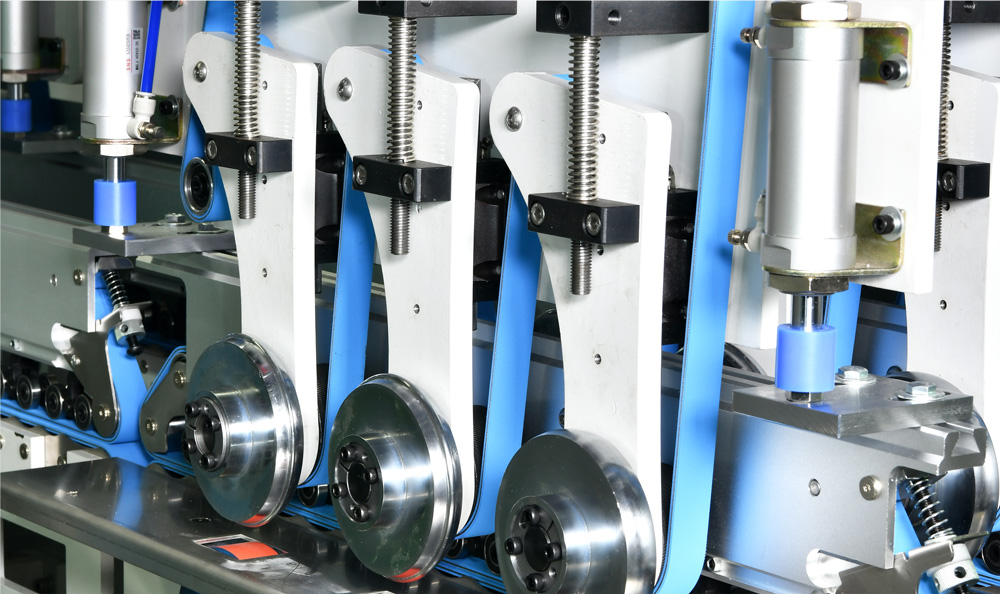

QHZ-2000-2200-2400-2800-Machine-details3

Creasing System

● Independent scoring section driven by motors.
● Located right after Side-register section, before pre-folding section.
● Allows to make deeper scores if needed.

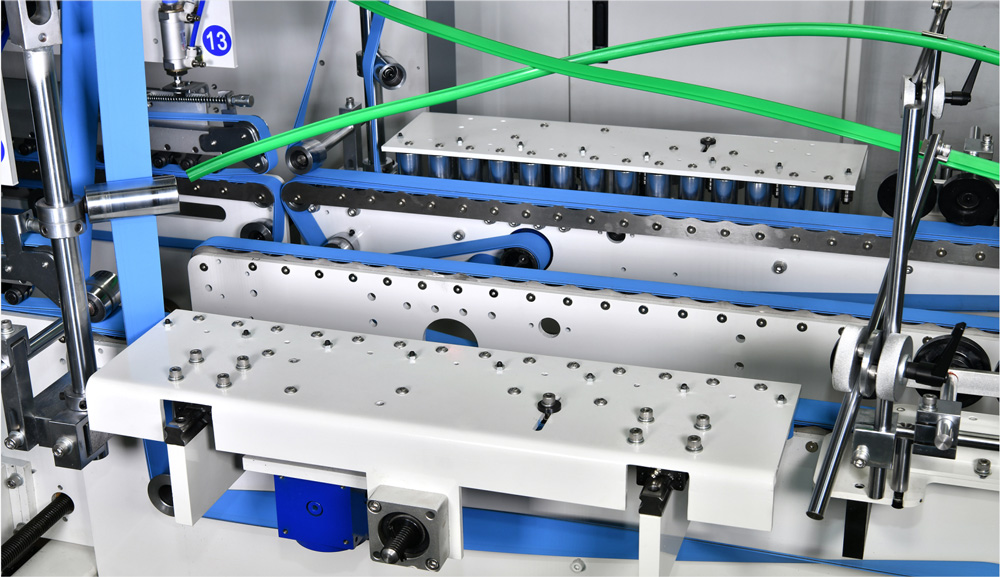

The Folding and Correction System

● Independent adjustable belts.
● Improve the folding precision.
● Make sure the folding and gluing quality and avoid many defects.

QHZ-2000-2200-2400-2800-Machine-details2

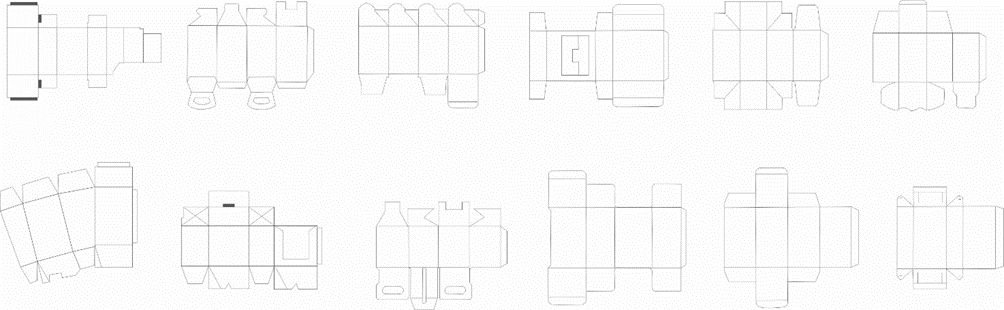

BLANK SIZES

Straight Box Blank	QHZ-2200			Lock Bottom Boxes Blank	QHZ-2200
	Size	Min	Max		Size	Min	Max
	C	200	2200		C	280	2200
	E	100	2200		E	120	1600
	L	90	1090		L	130	1090
4 Corners Boxes Blank	QHZ-2200			6 Corners Boxes Blank	QHZ-2200
	Size	Max	Min		Size	Max	Min
	C	2000	220		C	2000	280
	E	1600	160		E	1600	280
	H	300	50		H	300	60
