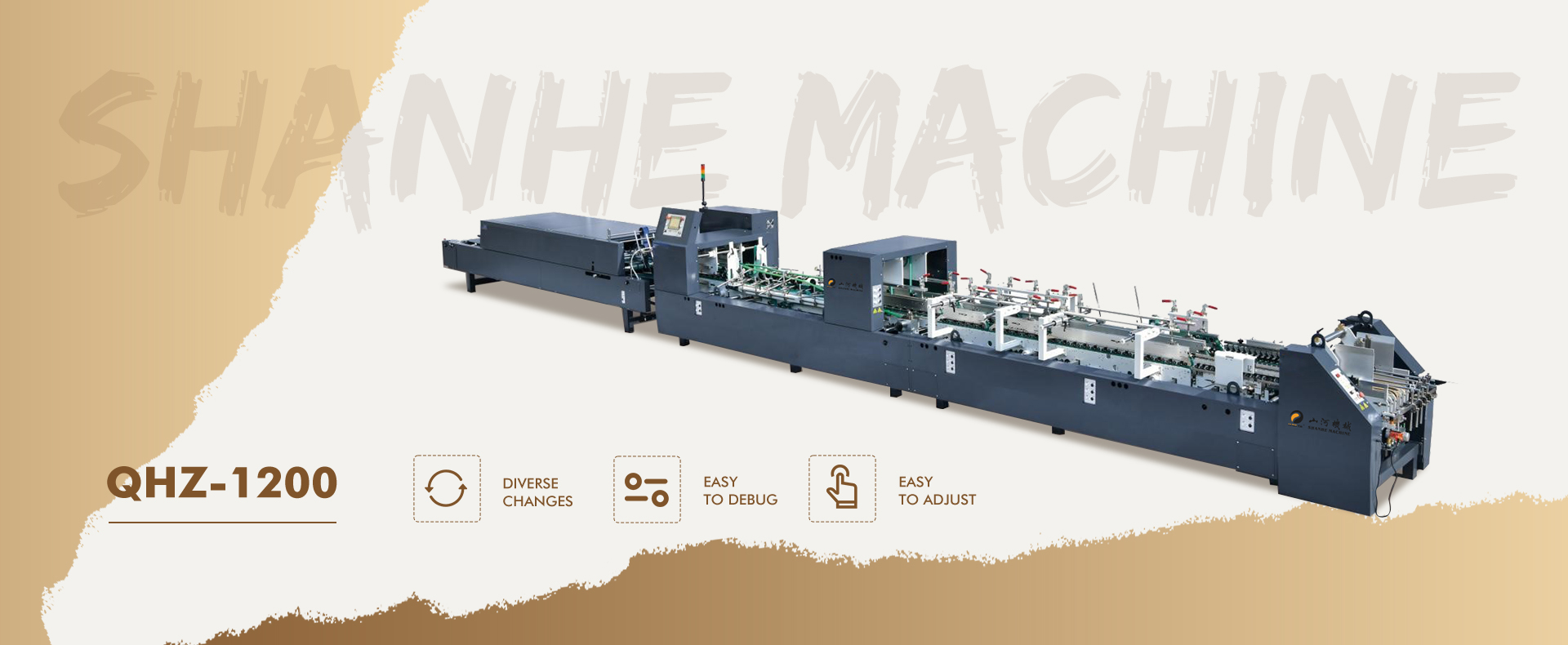

QHZ-1200 Full-auto High Speed Folder Gluer

Short Description:

QHZ-1200 is our latest enhanced model of folder gluer. Basically it applies to process cosmetic box, medicine box, other cardboard box or E/C/B/AB-flute corrugation box. It is suitable for 2-fold, side-sticking, 4-fold with lock-bottom (4-corner and 6-corner box are optional).


Product Detail

Product Tags

PRODUCT SHOW

SPECIFICATION

QHZ-1200
Paper thickness(g/㎡) 200—800
Material Carboard, B.C.E.F.N corrugated. It is suitable for pasting the first folding line of 180º, the third folding line of 135º, and the medicine box, wine box, cosmetic box and other pre-folding boxes that are easier to open and form on the automatic packaging line.
Box type(mm) One side        max: W×L: 800×1180  min：200×100
Lock bottom     max: W×L: 800×1180  min：210×120
4 corner         max: W×L: 800×1000  min：220×160
6 corner         max: W×L: 750×780   min：350×180
Max. speed(m/min) 300
Size(mm) 15500(L) × 1850(W) × 1500(H)
Weight(ton) About 7.5
Power(kw) 16

DETAILS

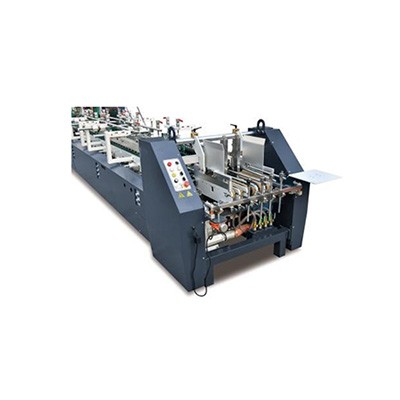

A. Feeding Part

● One set of high-strength special vibration motor (function: to make paper feeding more smooth and stable through vibration).
● Nitta feeding belts: 7pcs (specification：8×25×1207mm).
● Equipped with 2 sets of feeding knives and 2 sets of left and right paper stoppers.
● Equipped with Suction feeding system.
● Independent motor drive.
● Equipped with vibrator motor.
● Individual belt adjustment.
● The paper output belt is adjusted by the linear guide rail slider, with high precision and strong flexibility.

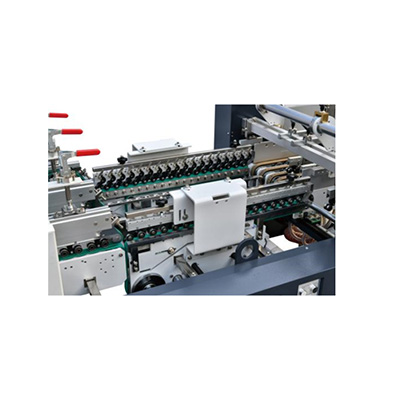

QHZ-1200-Full-Auto-High-Speed-Folder-Gluer3
QHZ-1200-Full-Auto-High-Speed-Folder-Gluer2

B. Auto Alignment

● Automatic register section to correct the paper feeding, avoid the paper going to sides.
● Equipped with a set of register device (left and right).
● Equipped with imported Germany Siegling or Italy Chiorino plane folding belt.

C. Pre-Folding Device

● Long re-folding device, 1st folding line is 180°, 3rd folding line has 135°. It is use for easy opening boxes.
● Equipped with imported German Siegling or Italian Chiorino plane folding belt.
● Synchronous belt drive (EP, American).

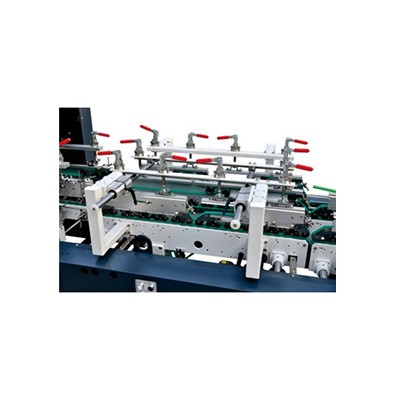

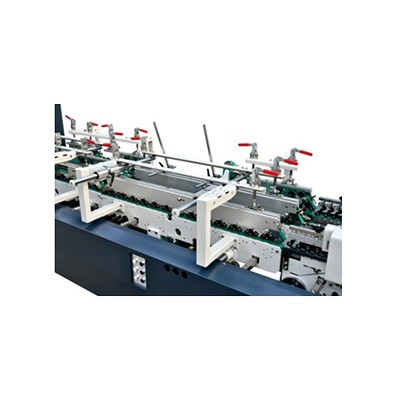

QHZ-1200-Full-Auto-High-Speed-Folder-Gluer1
QHZ-1200-Full-Auto-High-Speed-Folder-Gluer11

D. Lock Bottom Unit

● Modular design method, using special aluminum design to improve the installation and conversion time of accessories.
● Equipped with 4 sets of highly elastic spring hook seats.
● Equipped with imported German Siegling or Italian Chiorino plane folding belt.
● Synchronous belt drive (EP, American).

E. Lower Gluer Tank

Equip with two larger mechanical lower gluing device (left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance.

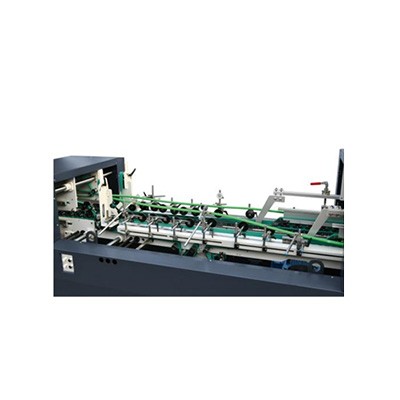

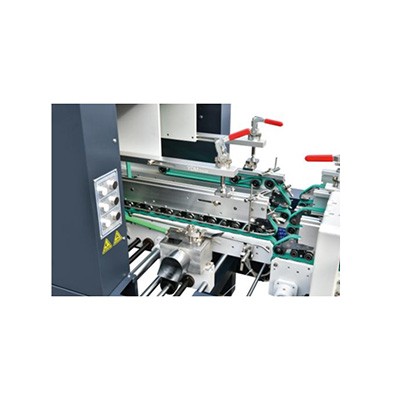

QHZ-1200-Full-Auto-High-Speed-Folder-Gluer10
QHZ-1200-Full-Auto-High-Speed-Folder-Gluer9

F. Folding Part

● It can meet the multi-style adjustment operation, which is fast and convenient, so that the box can be closed accurately.
● Equipped with 2 sets of left and right folding knives.
● Equipped with imported German Siegling or Italian Chiorino plane folding belt.
● Synchronous belt drive (EP, American).

G. Pressing Part

● Taiwan FATEK sensor and counter.
● Pneumatic kicker for counting.
● Equipped with pneumatic mechanical kick plate identification device.
● PLC computer control, man-machine interface.
● Equipped with imported German Siegling or Italian Chiorino plane folding belt.
● Synchronous belt drive (EP, American).

QHZ-1200-Full-Auto-High-Speed-Folder-Gluer8
QHZ-1200-Full-Auto-High-Speed-Folder-Gluer7

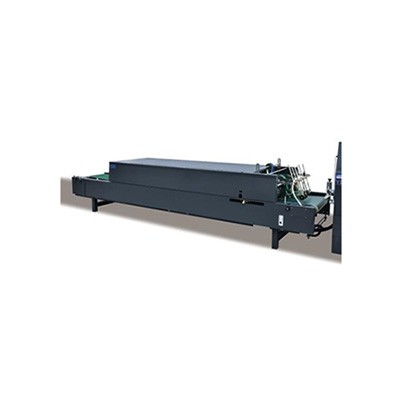

H. Conveying Part

● Transmission frequency conversion speed regulation, proportional linkage with the host.
● Air pressure rear machine can adjust the pressure independently, and the carton can be moderately pressurized to make the product more perfect.
● Long conveyor design that the product is not easy to be glued.
● The two belts are in driving system, so they could be in more synchronous running.
● With snap function.

I. Gluing System

4 CONTROL, 3 guns equipped.

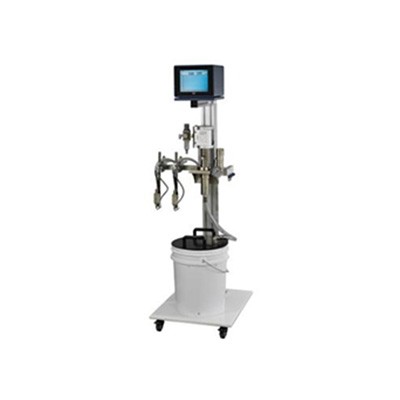

QHZ-1200-Full-Auto-High-Speed-Folder-Gluer6
QHZ-1200-Full-Auto-High-Speed-Folder-Gluer13

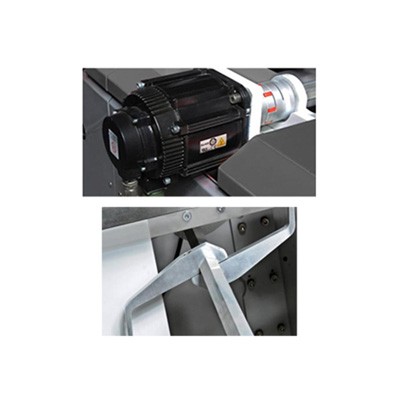

J. Servo Backing Folding System

4/6 points ok.

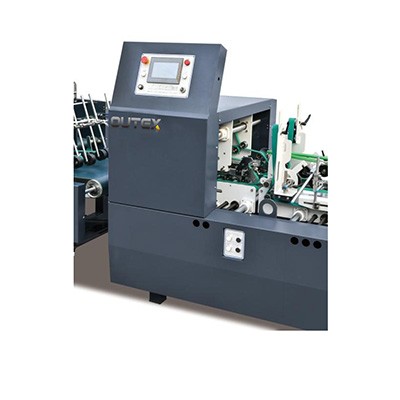

K. Electrical System

● PLC control, human-machine interface touch screen adjustment, front and rear proportional linkage.
● PLC adopts Taiwan FATEK (Yonghong) brand man-machine interface.
● Motor: Mindong main motor or TECO main motor.
