Multi Function Flip Flop Corrugated Paper Collecting Pile Turning Machine with Time Saving

Short Description:

The paper pile turnover machine is also known as the whole paper machine or the paper turnover machine. Its functions include aligning, blowing, dusting removal, drying and paper breaking. It is suitable for various (type/gram weight) papers. SHANHE Machine, based on continuous technological innovation, ensures the progressiveness and stability of its products and equipment. The body design of SHANHE paper turning machine is stable and durable. It greatly reduces the labor intensity of users, reduces labor costs, and improves product quality and enterprise efficiency.


Product Detail

Product Tags

“Control the standard by the details, show the energy by quality”. Our corporation has strived to establish a hugely efficient and stable workers team and explored an effective high quality control procedure for Multi Function Flip Flop Corrugated Paper Collecting Pile Turning Machine with Time Saving, We are trying to get for in depth cooperation with sincere shoppers, attaining a new result in of glory with customers and strategic partners.
“Control the standard by the details, show the energy by quality”. Our corporation has strived to establish a hugely efficient and stable workers team and explored an effective high quality control procedure for China Pile Turning Machine, We can meet the various needs of customers at home and abroad. We welcome new and old customers to come to consult & negotiate with us. Your satisfaction is our motivation! Let us work together to write a brilliant new chapter!

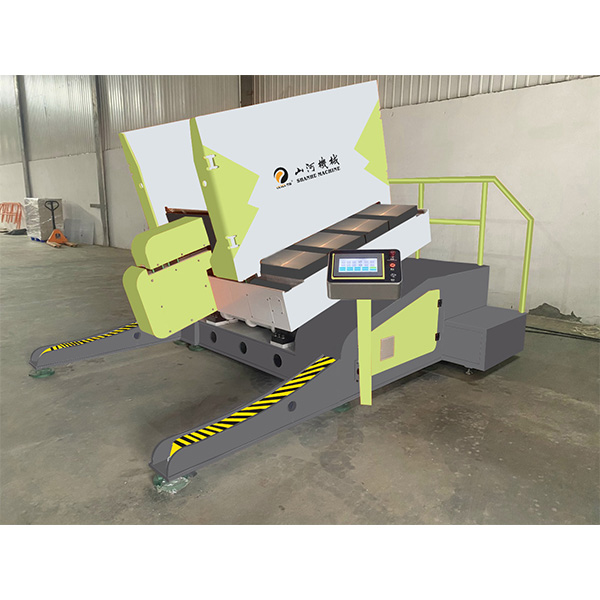

PRODUCT SHOW

SPECIFICATION

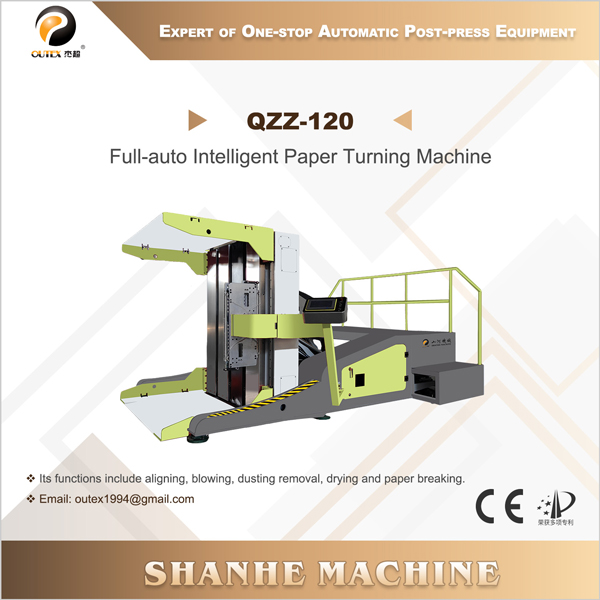

QZZ-120

Min. paper size(mm) 500 x 400
Max. paper size(mm) 1200 x 900
Min. stack height(mm) 790(with tray)
Max. stack height(mm) 1800(with tray)
Max. stack weight(T) 2.5
Number of hair dryer 3
Power Supply 380v50HZ
Power(kw) 14
Oil pressure(MPa) Max. 15
Temperature(℃) +12 – +45
Operating Weight(T) 3.6
Size(mm) 3380 x 2750 x 1890
Foundation requirements foundation is solid and smooth

QZZ-130

Min. paper size(mm) 550 x 400
Max. paper size(mm) 1300 x 1000
Min. stack height(mm) 790(with tray)
Max. stack height(mm) 1800(with tray)
Max. stack weight(T) 2.5
Number of hair dryer 3
Power Supply 380v50HZ
Power(kw) 14
Oil pressure(MPa) Max. 15
Temperature(℃) +12 – +45
Operating Weight(T) 4.1
Size(mm) 3380 x 2750 x 1890
Foundation requirements foundation is solid and smooth

QZZ-150

Min. paper size(mm) 600 x 500
Max. paper size(mm) 1500 x 1350
Min. stack height(mm) 820 (with tray)
Max. stack height(mm) 1800 (with tray)
Max. stack weight(T) 2.8
Number of hair dryer 4
Power Supply 380v50HZ
Power(kw) 23
Oil pressure(MPa) Max. 15
Temperature(℃) +12 – +45
Operating Weight(T) 5.2
Size(mm) 3950 x 2900 x 1890
Foundation requirements foundation is solid and smooth

QZZ-170

Min. paper size(mm) 700 x 500
Max. paper size(mm) 1700 x 1450
Min. stack height(mm) 1200 (with tray)
Max. stack height(mm) 1800 (with tray)
Max. stack weight(T) 3.2
Number of hair dryer 4
Power Supply 380v50HZ
Power(kw) 23
Oil pressure(MPa) Max. 15
Temperature(℃) +12 – +45
Operating Weight(T) 6
Size(mm) 3510 x 2910 x 2000
Foundation requirements foundation is solid and smooth

FEATURE

It is equipped with efficient servo motor and reducer to realize automatic paper pile rotation operation, and with the enhanced hydraulic system, it greatly improves the work efficiency of paper pile operation.

Integrated operation panel, one key automatic sorting, turning, paper running, dedusting and other functions.

The air pump is individually controlled and variable-frequency, and automatically detects whether it is closed or opened according to the size of the paper.

DETAILS

Main Function

● It has the functions of automatic turning, blowing alignment, paper removing powder, drying, etc.

● Equipped with 12 special feet for precision machine tools.

● Equipped with 7 automatic operation program modes: standard mode, standard card change mode, double side printing special mode, flip blow mode, custom mode 1, custom mode 2, flip mode.

● Equipped with 3-channel independent air blowing system.

● Equipped with parameter debugging, wireless remote control operating system, one-key completion.

● Equipped with side gauge automatic movement system.

● Equipped with side gauge automatic paper detection system.

● With tray centering and operation warning function.

● Equipped with blowing and non-winding coupling system.

● Equipped with oil pressure non-winding coupling system.

● Equipped with a blowing stepless pressure regulating system.

● Equipped with a stepless speed regulation system for blowing speed.

● Equipped with vibration stepless frequency modulation system.

● Equipped with digital clamping pressure control system.

● Equipped with upper and lower tray reduction system.

● Equipped with power-off automatic program memory system.

● Adopt PCB integrated wiring system, PLC operating system.

● Optional enough ion wind static elimination system and automatic safety protection grating.
