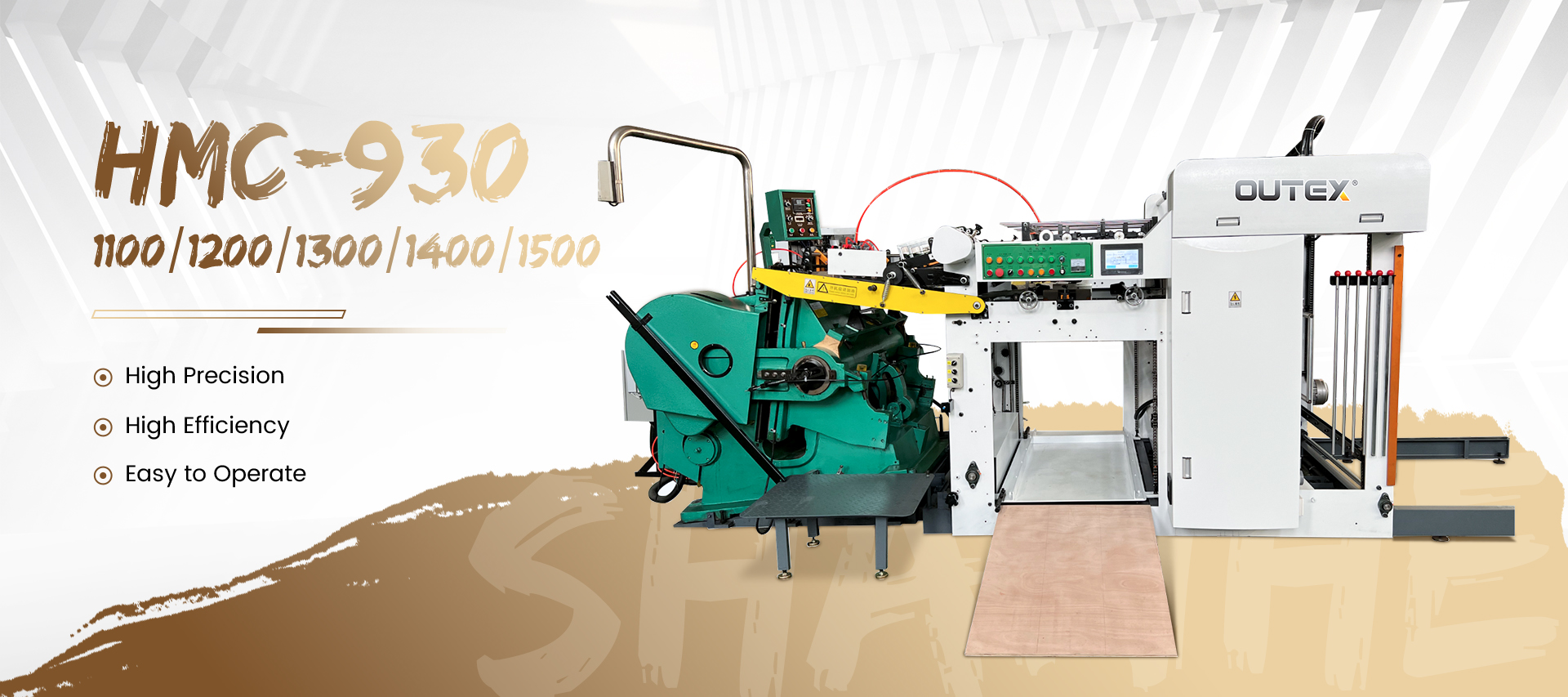

HMC-930/1100/1200/1300/1400/1500 Automatic Die-cutting Machine

Short Description:

Automatic Die-cutting Machine is an ideal equipment for processing box & carton. Its advantage: high production speed, high precision, high die cutting pressure. Machine is easy to operate; low consumables, stable performance with outstanding production efficiency.

Send email to us

Product Detail

Product Tags

VIDEO

SPECIFICATION

Model	HMC-930	HMC-1100	HMC-1200	HMC-1300	HMC-1400	HMC-1500
Size of face plate (mm)	670*930	810*1100	820*1200	930*1300	1050*1430	1050*1530
Min. cutting size (mm)	350*460	350*460	360*460	460*520	460*660	460*660
Max. cutting size (mm)	660*920	780*1060	780*1160	910*1250	950*1380	950*1480
Paper thickness (mm)	0.2-5.0	0.2-5.0	0.2-5.0	0.2-5.0	0.2-5.0	0.2-5.0
Max. feeding pile height (mm)	1100	1100	1100	1100	1200	1200
Max. delivery pile height (mm)	800	800	800	800	800	900
Main motor power (kw)	4	4	4	5.5	5.5	7
Total power (kw)	7	7	9	9	9	12
Air Consumption (M/Pa)	0.5	0.5	/	/	/	/
Max. speed （pcs/h））	1000-1700	1000-1700	1000-1600	1000-1200	700-1000	700-1000
Weight (kg)	2200	2300	2350	2400	2500	2600
Machine size (mm)	L5900 * W2100 * H2000			L7550 * W2800 * H2300

Machine Details

A.Electric eye inspection is conducive to reducing the paper damage rate, precision and safety. Easy to operate

B.The paper feed table is equipped with automatic supply table device, which can be operated continuously, without stopping, and has high efficiency.

C.Front stop and side stop can be freely adjusted according to the size of the paper layout, high accuracy.

D.Both paper feeding and paper receiving are vacuum aspirated, which can eliminate the problem of biting the claw of general automata, and is suitable for general cardboard, such as E/B/A-flute corrugated board and plastic board.
