HMC-1700 Automatic Die Cutting Machine

Short Description:

HMC-1700 automatic die-cutting machine is an ideal equipment for processing box & carton. Its advantage: high production speed, high precision, high die cutting pressure, high stripping efficiency. Machine is easy to operate; low consumables, stable performance with outstanding production efficiency.


Product Detail

Product Tags

Specification

Model HMC-1700
Max. paper feeding size 1700x1210mm
Min. paper feeding size 480x450mm
Max. die-cutting size 1680x1190mm
Die cutting thickness specifications 1 ≤ 8mm

(corrugated board)

Die-cutting precision ±0.5mm
Min. bite 10mm
Max. mechanical speed 4500s/h
Max. working pressure 350T
Paper receiving height 1300mm
Overall power 37.5kw
Air source pressure 0.8mpa

Overall size (L*W*H) (including treadmill paper machine)

11x6x2.8m
Overall weight 30T

Machine Details

A. Paper feeding part (Optional)

a. Leading edge paper feeding system

Adopting a gearbox and air pump control system structure to prevent embossing and peeling of the printing surface.

1 (1)

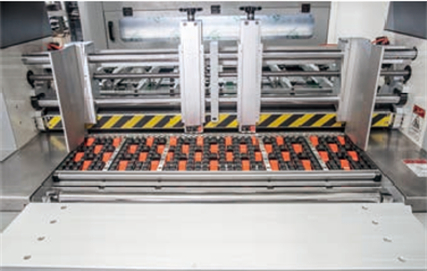

b.Lower suction feeding paper

Adopting high-precision bottom suction feeding and vacuum suction feeding to feed the paper roller, it is not easy to scratch the printing surface.

1 (2)

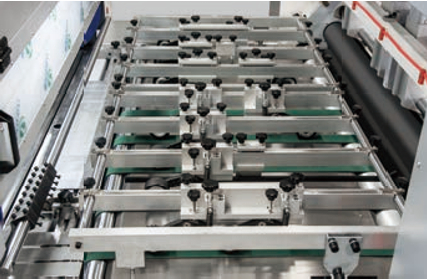

B. Paper feeding part

Using a paper feeding rubber wheel combined with a rubber roller, the corrugated paper is accurately delivered to prevent warping.

1 (3)

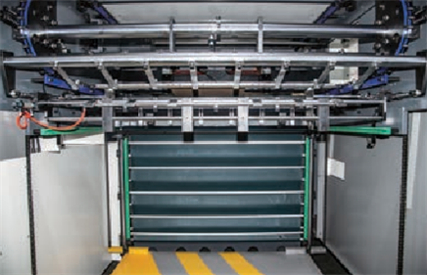

C. Paper receiving part

Non stop rolling shutter for paper collection, automatic switching of collection and release.

1 (4)

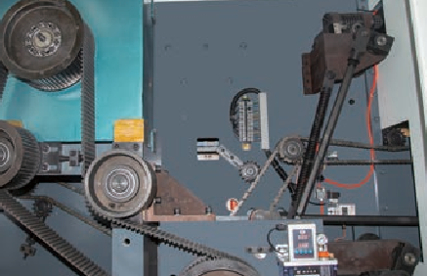

D. Drive part

Belt connecting rod transmission, low noise, and accurate accuracy.

1 (5)

E. Waste cleaning part

Semi clean waste, effectively removing paper materials on three sides and in the middle, clean and tidy.

1 (6)
