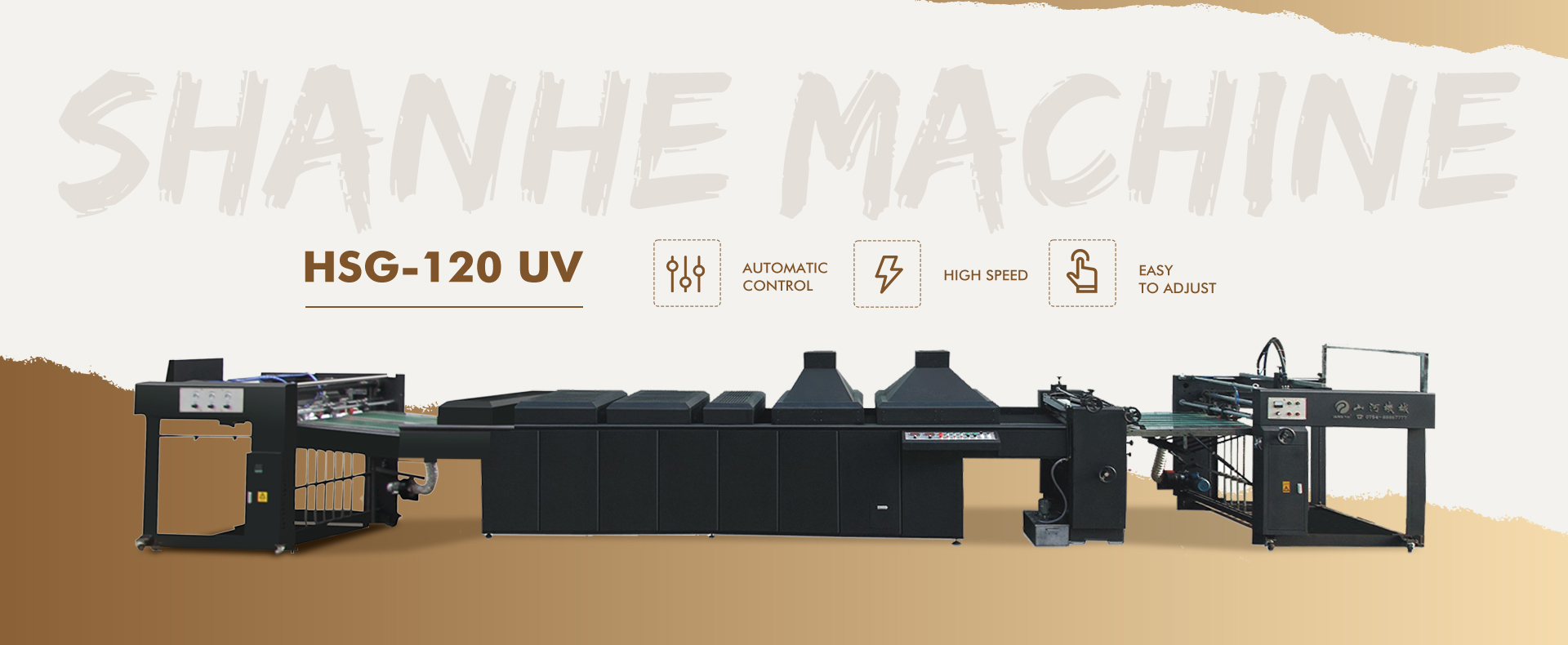

HSG-120UV Full-auto High Speed Varnishing Machine

Short Description:

HSG-120UV Full-auto High Speed Varnishing Machine is used in coating varnish on the paper surface in order to brighten the papers. With automatic control, high speed operation and convenient adjustment, it can totally replace manual varnishing machine, and provide clients a new processing experience.


Product Detail

Product Tags

PRODUCT SHOW

SPECIFICATION

HSG-120UV
Max. paper size(mm) 1200(W) x 1200(L)
Min. paper size(mm) 350(W) x 400(L)
Paper thickness(g/㎡) 200-600
Machine speed(m/min) 25-100
Power(kw) 63.8
Weight(kg) 5200
Machine size(mm) 14000(L)x1900(W)x1800(H)

HSG-120DUV
Max. paper size(mm) 1200(W) x 1200(L)
Min. paper size(mm) 350(W) x 400(L)
Paper thickness(g/㎡) 200-600
Machine speed(m/min) 25-100
Power(kw) 74.8
Weight(kg) 7800
Machine size(mm) 18760(L)x1900(W)x1800(H)

FEATURES

Fast speed 90 meter / minute

Easy to operate (automatic control)

New way in drying (IR heating + air drying)

Powder remover can also be used as another coater to coat varnish on the paper, so that papers with twice varnish will be much brighter.

DETAILS

1. Coating Part

The first unit is the same as the second one. If add water then the unit can be used to remove printing powder. The second unit is a three-roller design, whose rubber roller adopts particular material so that it can evenly coat product with good effect. And it fits for water-based/oil-based oil and blister varnish, etc. The unit can be conveniently adjusted on one-side.

c
v

2. Drying Tunnel

This brand new IR drying system has technical improvements — it reasonably matches IR drying system with air drying and finally finds a ways to rapidly dry paper. Comparing with the traditional IR heating, this one saves over 35% energy and increases production efficiency. The conveying belts are also redesigned——we use Teflon net belt so that it is suitable for stably delivering different sizes’ paper.
