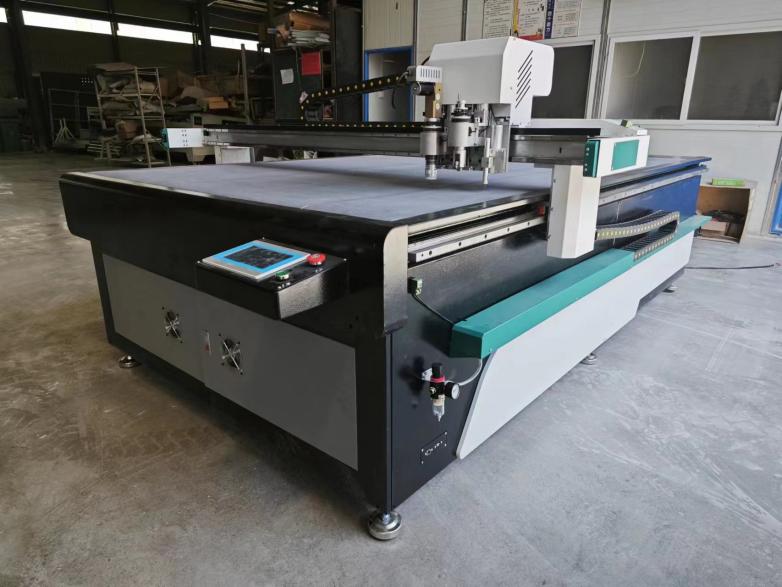

DC-2516 Fixed Table Digital Knife Cutting Machine

Short Description:

SHANHE digital cutting machine is a perfect combination of technique and technology. It is widely used for cutting paper materials, such as cardboard, corrugated paper, paper honeycomb, etc. It is also able to cut leather, glass fiber, carbon fiber, fabric, sticker, film, foam board, acrylic board, rubber, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

This digital cutting machine work with your computer by Ethernet cable, you can send any design shape to it for cutting purpose. According to your different requirements, SHANHE digital cutting machine can be equipped with multi-functional combined cutting tools, CCD positioning system, projector and other good quality components or devices. It is easy for users to learn and operate.


Product Detail

Product Tags

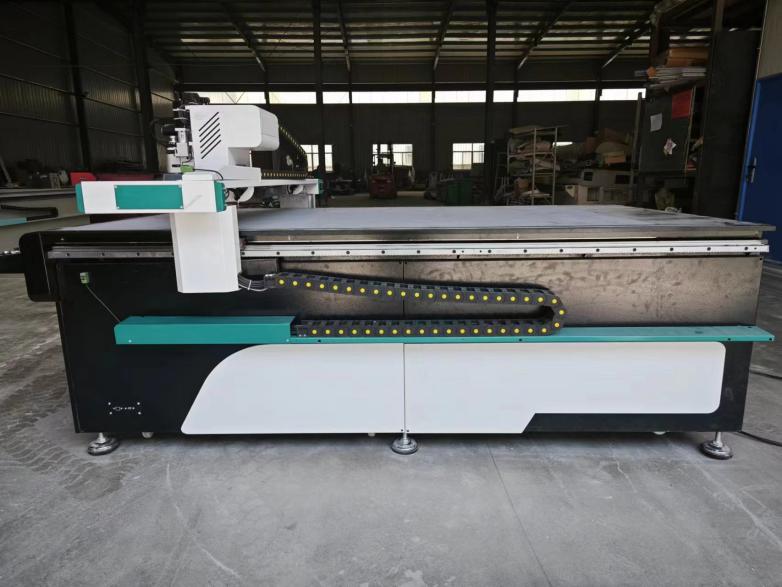

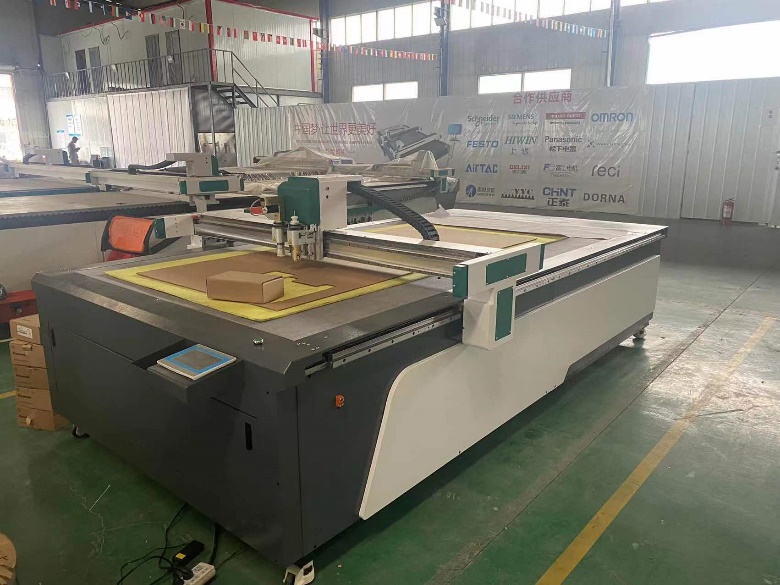

PRODUCT SHOW

SPECIFICATION

DC-2516

Working area 1600mm (Width Y Axis)*2500mm (Length X1, X2 Axis)
Working table Fixed vacuum working table
Material fixed way Vacuum suction system
Cutting speed 0-1,500mm/s(according to different cutting materials)
Cutting thickness ≤20mm
Cutting accuracy ≤0.1mm
Drive system Taiwan Delta servo motors and drivers
Transmission system Taiwan linear square guide rails
Instruction system HP-GL compatible format
Vacuum pump power 7.5 KW
Graphic format supported PLT, DXF, AI, etc.
Compatible CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.
Safety device Infrared sensors and emergency stop devices
Working voltage AC 220V/ 380V±10%, 50Hz/60Hz
Package Wooden case
Machine size 3150 x 2200 x 1350 mm
Packing Size 3250 x 2100 x 1120 mm
Net weight 1000KGS
Gross weight 1100KGS

FEATURE

Imported Taiwan square linear guide and Delta servo motor ensure high accuracy, fast cutting speed and stable working performance.

Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life.

The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

Digital cutting machine was designed easy to install, set-up and operate.

Being equipped with infrared sensor and emergency stop devices, guarantees safety.

Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutters.

DETAILS

Hd Touch Control Panel

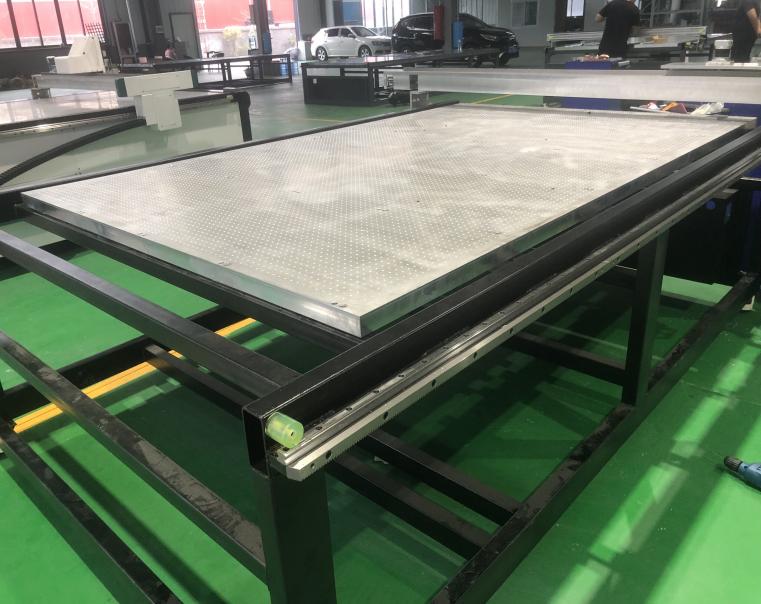

The Heavy Duty Whole Cast Aluminum Vacuum Table

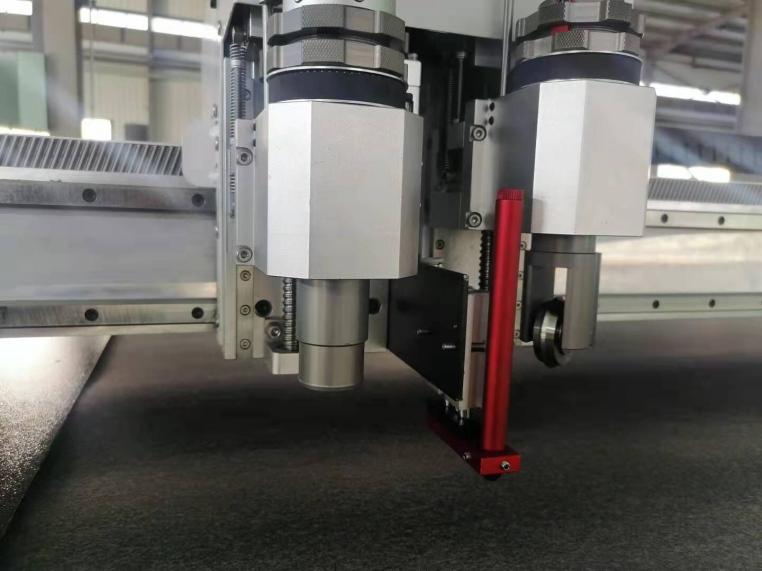

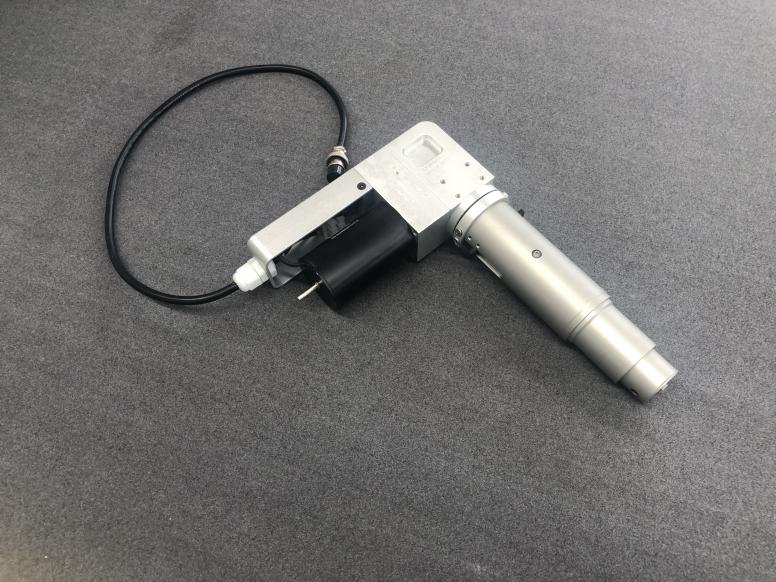

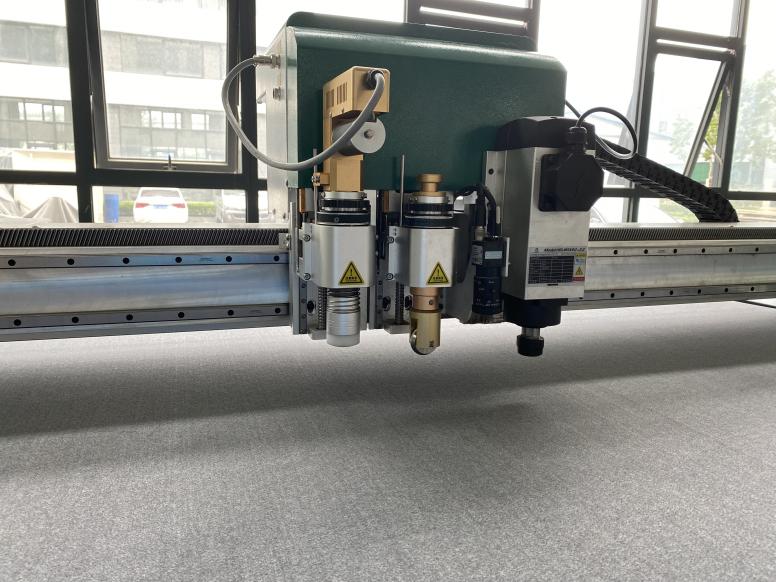

The Premium Oscillating Cutting Tool

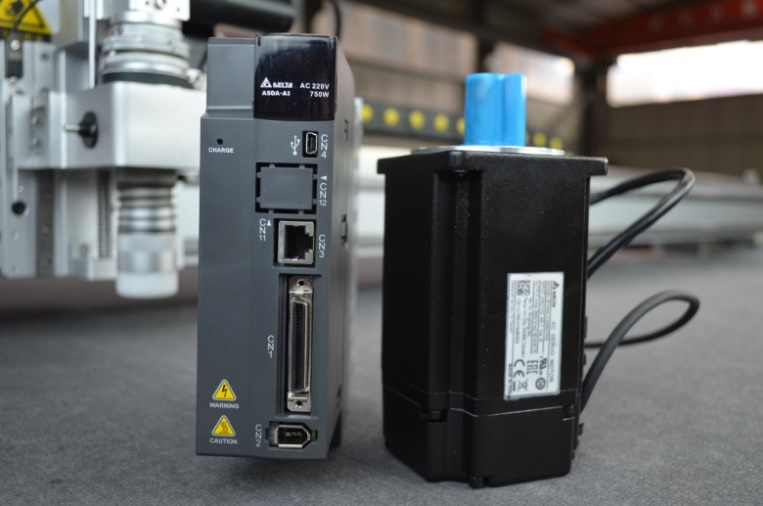

Taiwan Delta/ Japan Panasonic Servo Motors and Drivers

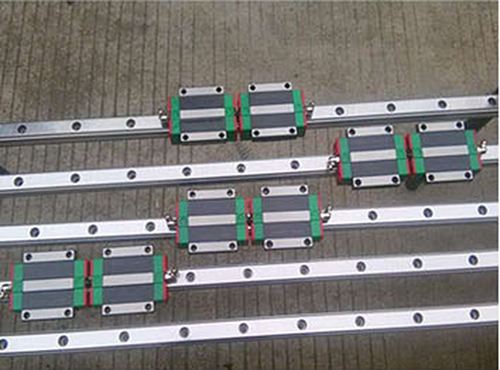

Taiwan Linear Guide Rails & Racks

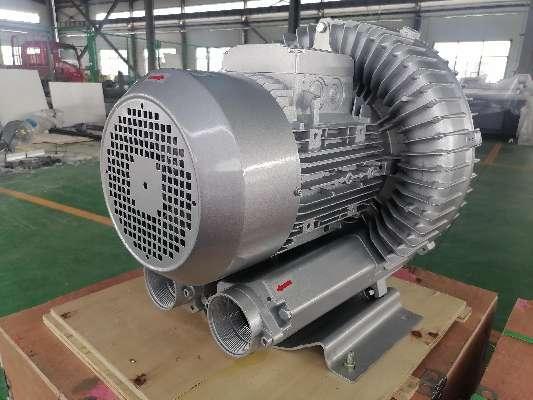

Vacuum Pump with Silencer

Ruida Automatic Typesetting Software


Anti-collision Device

The Premium Creasing Tool

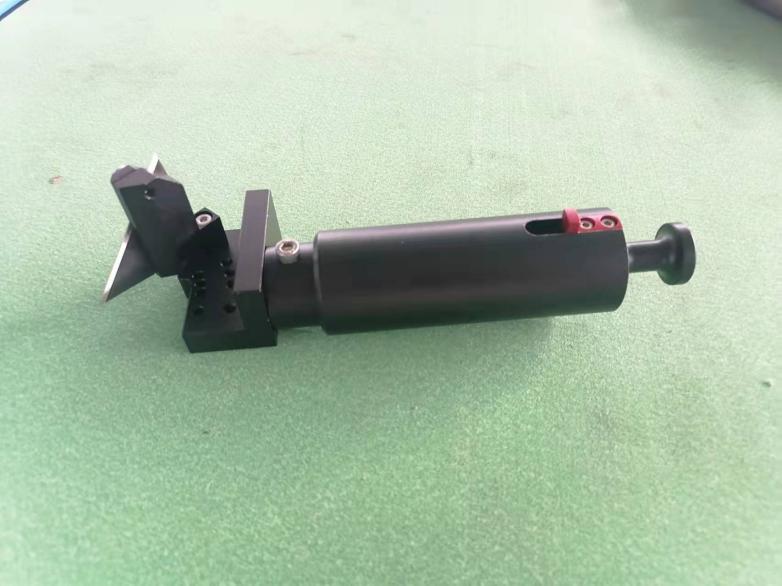

The V Cut Tool Optional

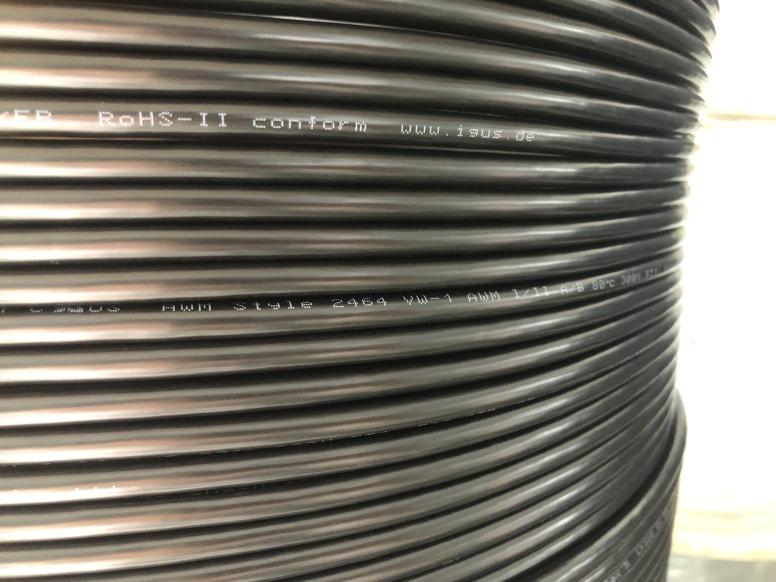

Germany Igus Cables

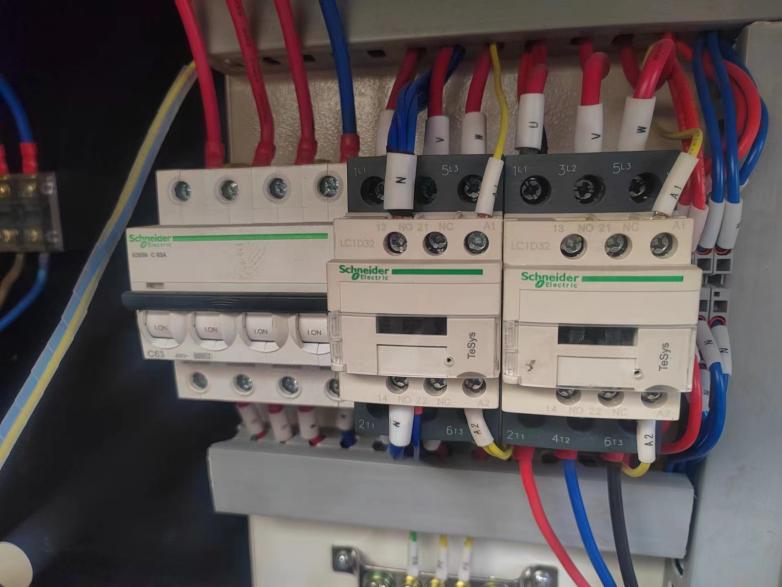

Germany Schneider Parts

The Spindle Optional


The Wooden Case Included
